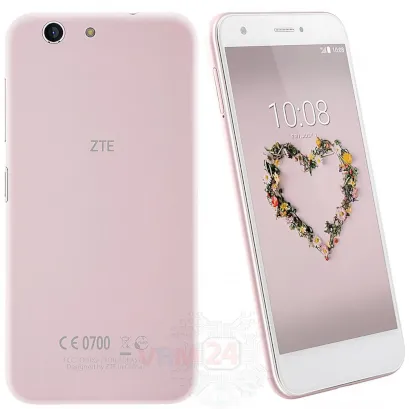

Disassembly/Repair of the mobile device ZTE Blade A512 (ZTE Blade Z10, A512) with each step description and the required set of tools.

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the three screws and remove the brackets holding the connectors.

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The ZTE Blade A512 model has a battery Li3925T44P8h786035 with 2540 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the four screws.

Pry over the edge and remove the loudspeaker assembly with antennas.

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the four screws.

Pry over the edge and remove the cover with antenna tracks.

Disconnect the coaxial cable connector, cable to the mainboard on the daughterboard.

⚠️️ Do not forget to unstick the body of the vibration motor. It is slightly glued with adhesive tape.

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, vibration motor, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

Disconnect the connector on the motherboard, and remove the front (selfie) camera.

Pry up the connectors of the side buttons cable, display module cable, inter-board cable, and coaxial cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

ℹ️️ In the display frame remained: the earpiece speaker, battery, and coaxial cable.
