Disassembly/Repair of the mobile device ZTE Blade A910 with each step description and the required set of tools.

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and remove it.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

Pry up the connector and remove the cable with a fingerprint sensor.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the seven black and one silver screws.

If the screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

Pry over the edge and remove the cover with antennas.

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The ZTE Blade A910 model has a battery Li3925T44P8h786035 with 2540 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the ten screws.

Pry over the edge and remove the loudspeaker assembly with antennas.

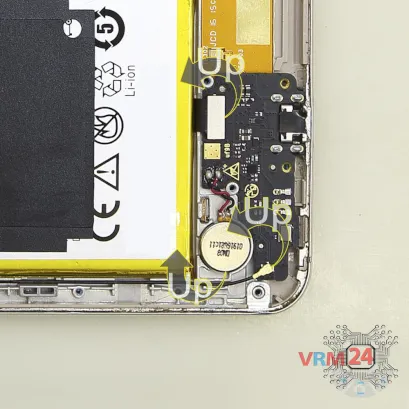

Disconnect the coaxial cable connector, cable to the inter-board cable. Also, we pry up the body of the vibration motor.

⚠️️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, vibration motor, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

Pry up the connectors of the display module cable, inter-board cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

Pry at the bottom and remove the earpiece speaker.

⚠️️ Be careful! The earpiece speaker is glued a bit with adhesive.

⚠️️ If we pry the speaker in the middle we may break the earpiece speaker in half.

ℹ️️ In the display frame remained: the battery.
