Highscreen Spider
Highscreen Spider
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Highscreen Spider with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Highscreen Spider, Step 1/1 How to disassemble Highscreen Spider, Step 1/2

Step 1.

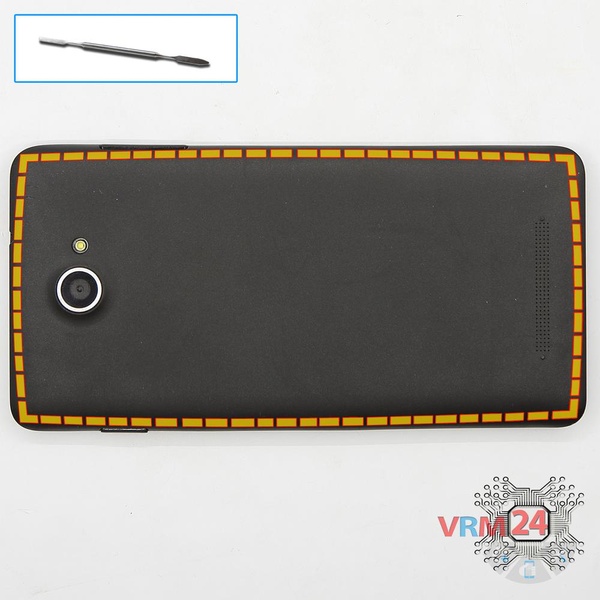

Open the back cover.

How to disassemble Highscreen Spider, Step 2/1 How to disassemble Highscreen Spider, Step 2/2

Step 2.

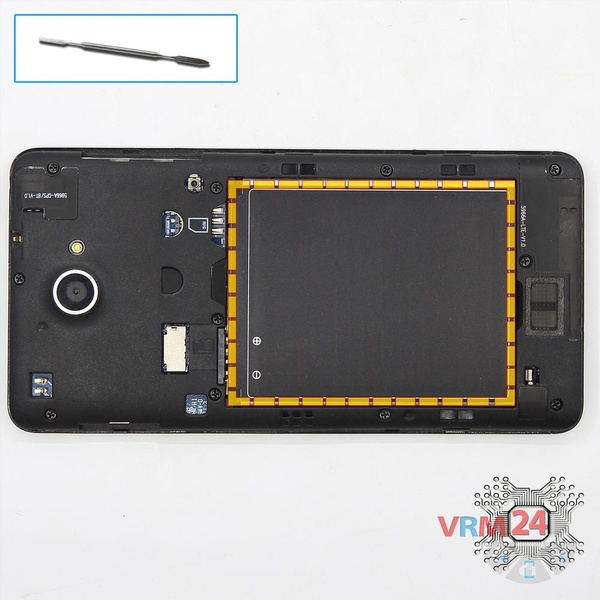

Lift and remove the battery.

How to disassemble Highscreen Spider, Step 3/1 How to disassemble Highscreen Spider, Step 3/2

Step 3.

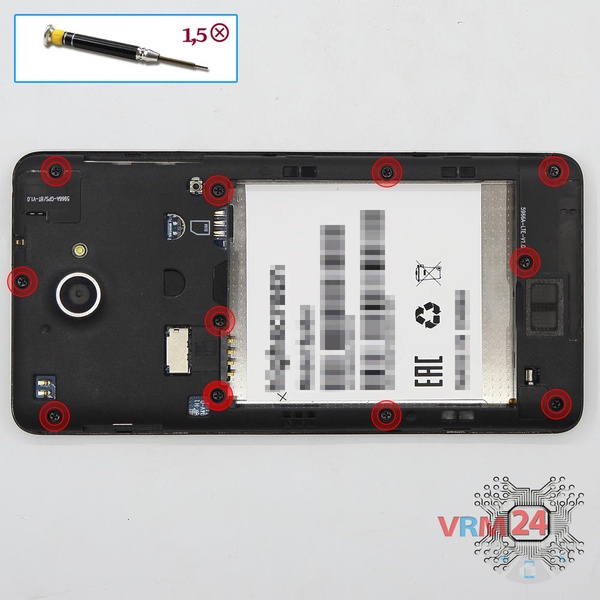

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Highscreen Spider, Step 4/1 How to disassemble Highscreen Spider, Step 4/2

Step 4.

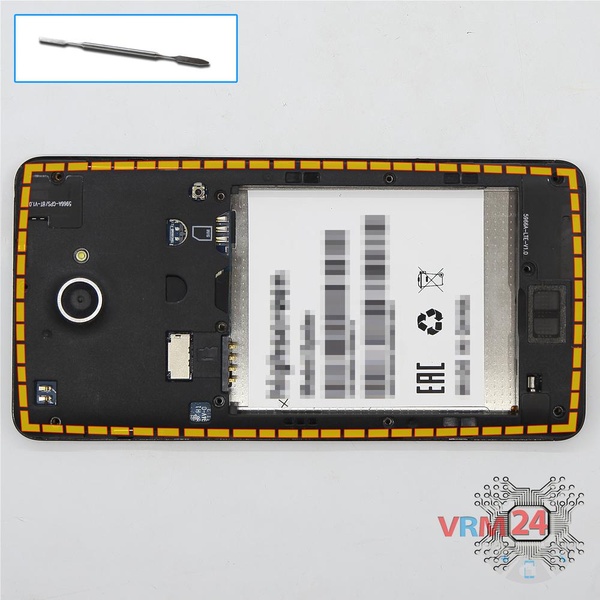

Pry and remove the middle frame.

How to disassemble Highscreen Spider, Step 5/1 How to disassemble Highscreen Spider, Step 5/2 How to disassemble Highscreen Spider, Step 5/3

Step 5.

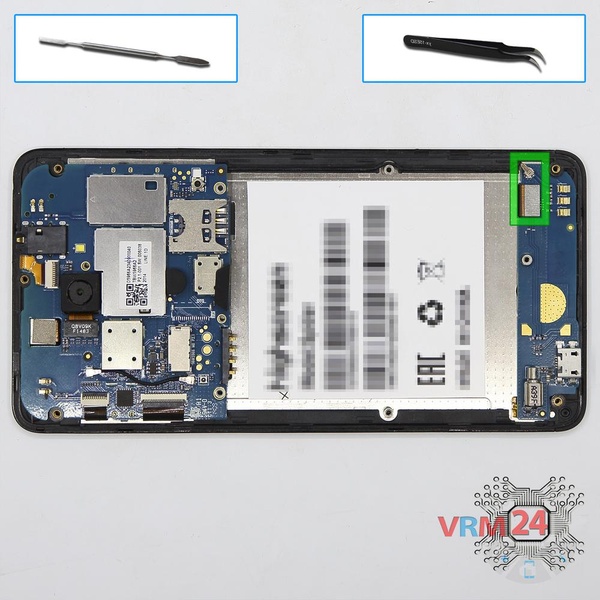

Disconnect connectors on the lower PCB and remove it.

How to disassemble Highscreen Spider, Step 6/1 How to disassemble Highscreen Spider, Step 6/2

Step 6.

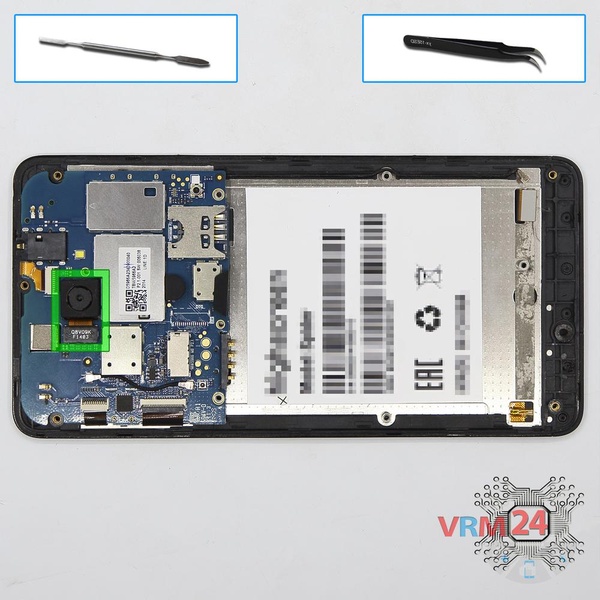

Disconnect connector on the PCB and remove the main camera.

How to disassemble Highscreen Spider, Step 7/1 How to disassemble Highscreen Spider, Step 7/2 How to disassemble Highscreen Spider, Step 7/3

Step 7.

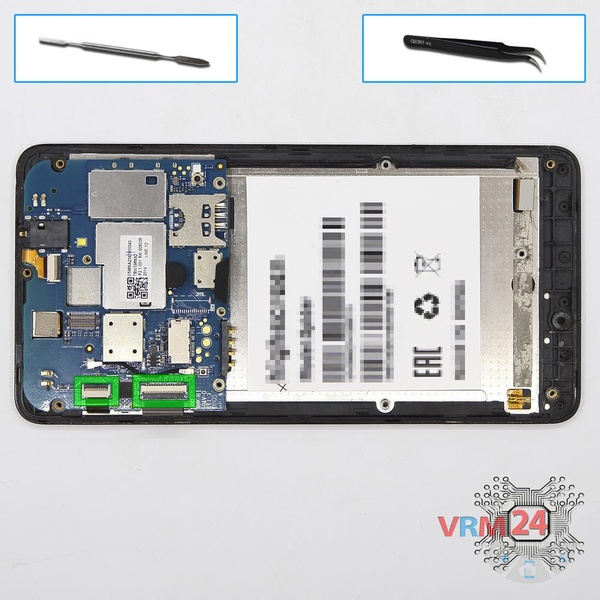

Disconnect connectors on the PCB.

How to disassemble Highscreen Spider, Step 8/1 How to disassemble Highscreen Spider, Step 8/2 How to disassemble Highscreen Spider, Step 8/3

Step 8.

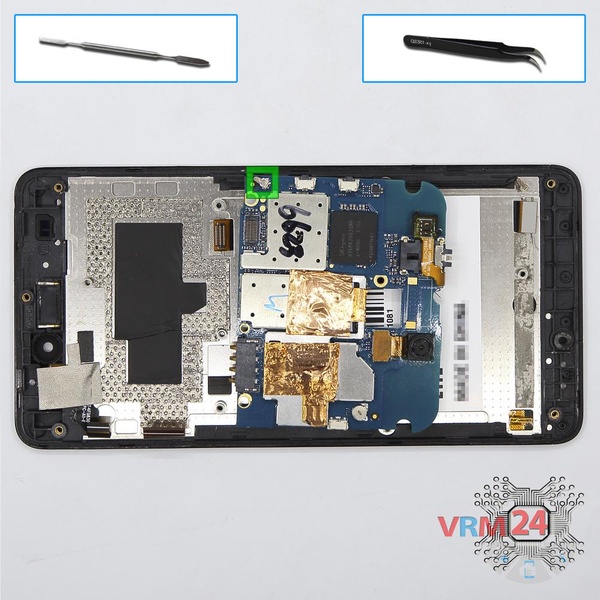

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.

How to disassemble Highscreen Spider, Step 9/1 How to disassemble Highscreen Spider, Step 9/2 How to disassemble Highscreen Spider, Step 9/3

Step 9.

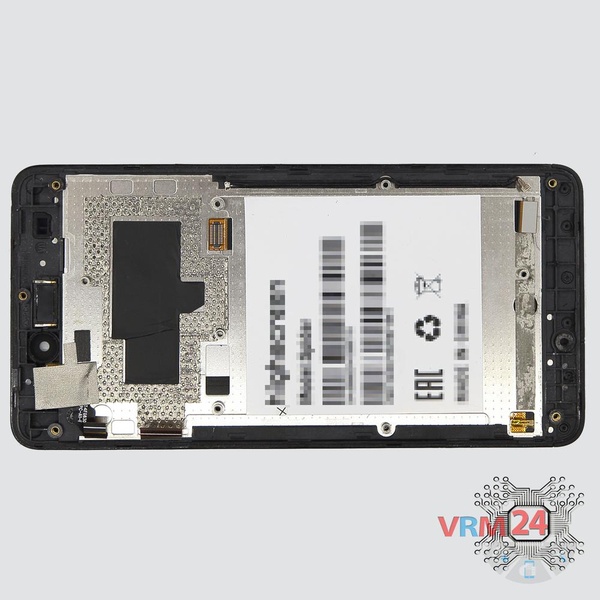

Parts in the frame of the display module.

Detailed disassembly instructions of Highscreen Spider in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Spider
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Highscreen Spider released for markets in different countries.
