HTC Desire 820
HTC Desire 820
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 820 (HTC Desire 820 OPMG200) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble HTC Desire 820, Step 1/1

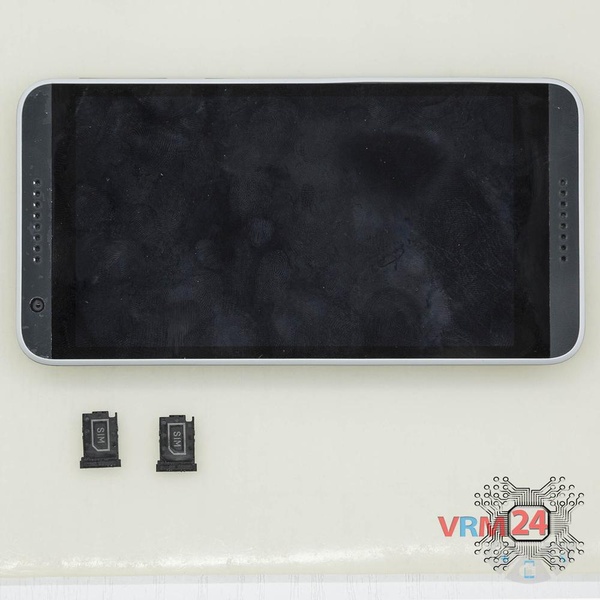

Step 1.

Using the key tool, open the SIM card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble HTC Desire 820, Step 2/1 How to disassemble HTC Desire 820, Step 2/2

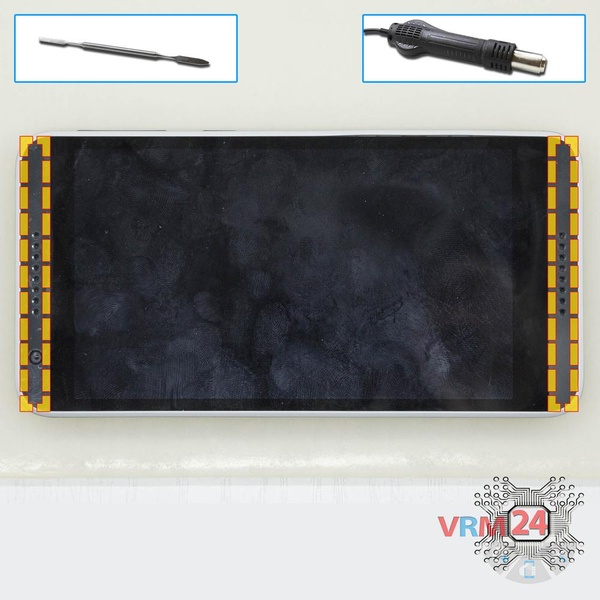

Step 2.

Unstick the cover hiding the screws securing the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble HTC Desire 820, Step 3/1 How to disassemble HTC Desire 820, Step 3/2

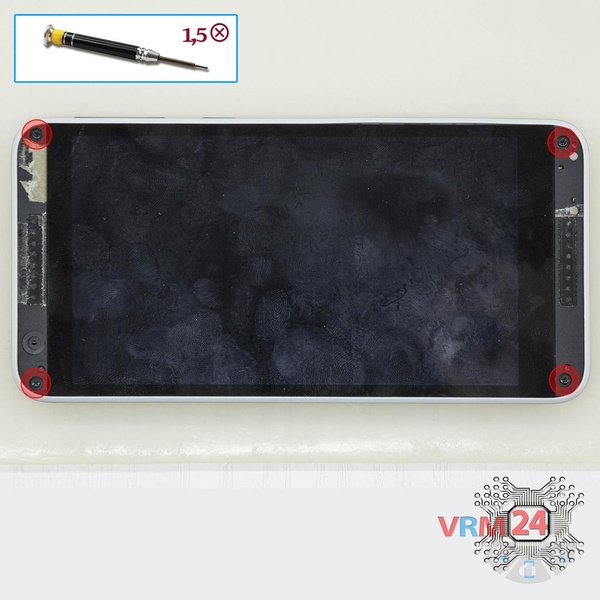

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts securing the back cover.

How to disassemble HTC Desire 820, Step 4/1 How to disassemble HTC Desire 820, Step 4/2

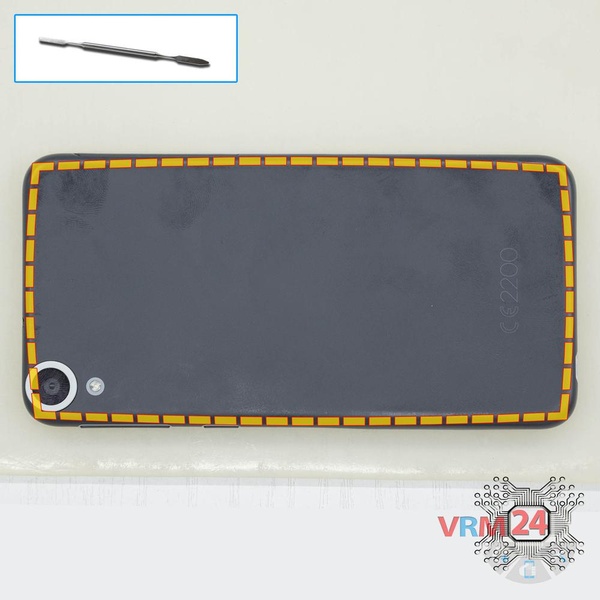

Step 4.

Open the back cover.

How to disassemble HTC Desire 820, Step 5/1 How to disassemble HTC Desire 820, Step 5/2

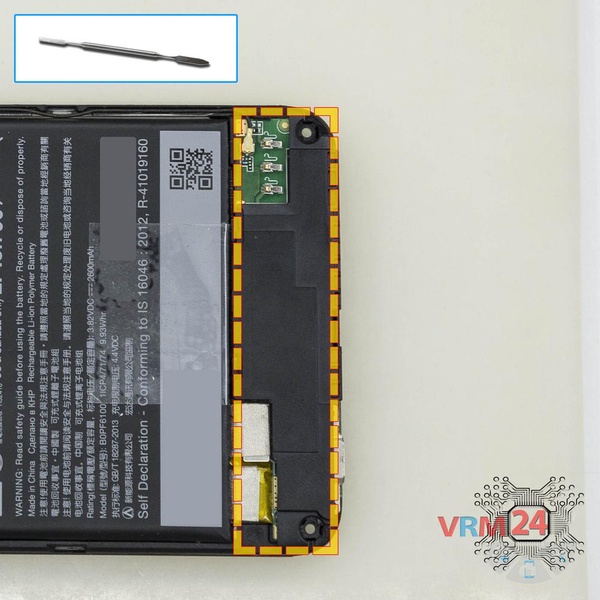

Step 5.

Remove the bottom cover.

How to disassemble HTC Desire 820, Step 6/1 How to disassemble HTC Desire 820, Step 6/2 How to disassemble HTC Desire 820, Step 6/3

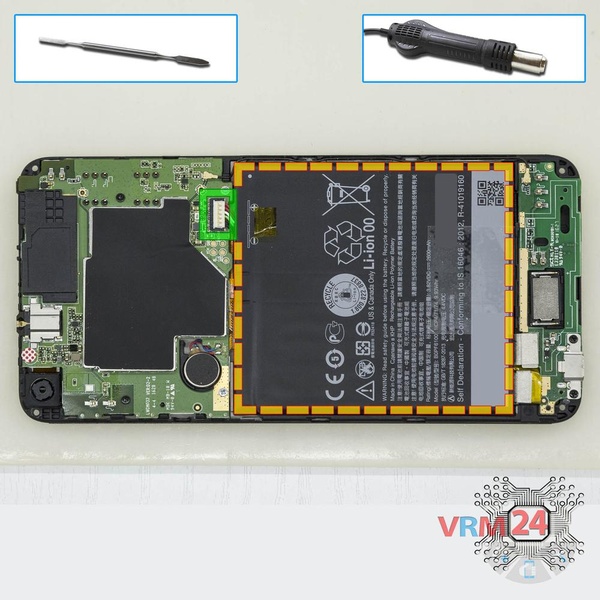

Step 6.

Disconnect the connector on PCB and remove the battery.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble HTC Desire 820, Step 7/1 How to disassemble HTC Desire 820, Step 7/2

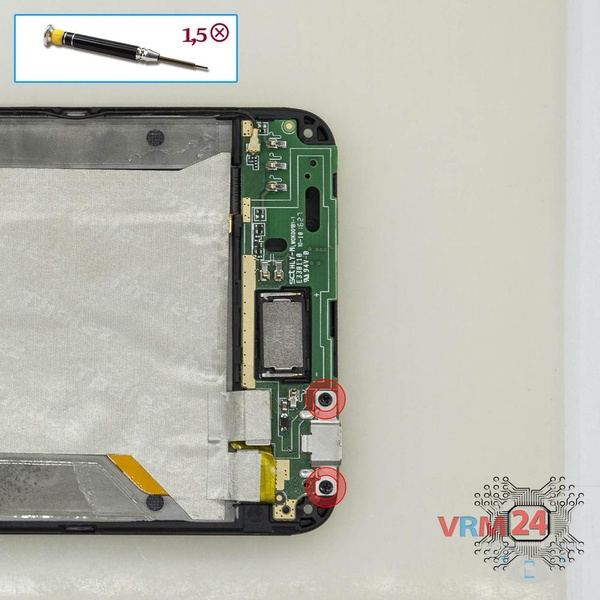

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts securing the charging port.

How to disassemble HTC Desire 820, Step 8/1 How to disassemble HTC Desire 820, Step 8/2

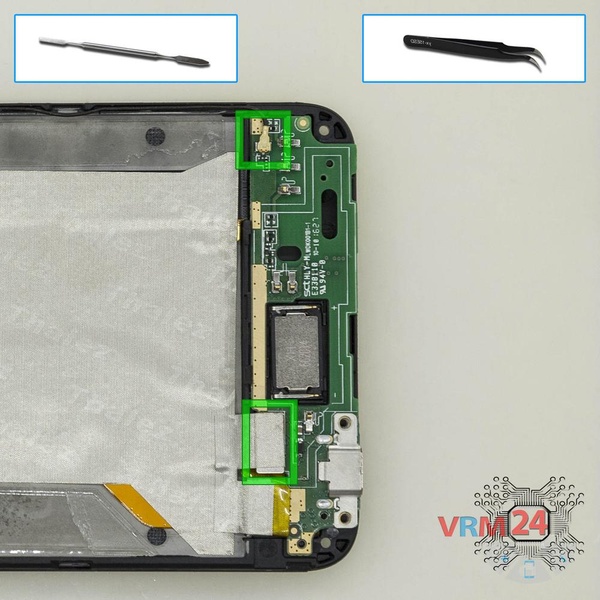

Step 8.

Disconnect connectors on the daughterboard.

How to disassemble HTC Desire 820, Step 9/1 How to disassemble HTC Desire 820, Step 9/2

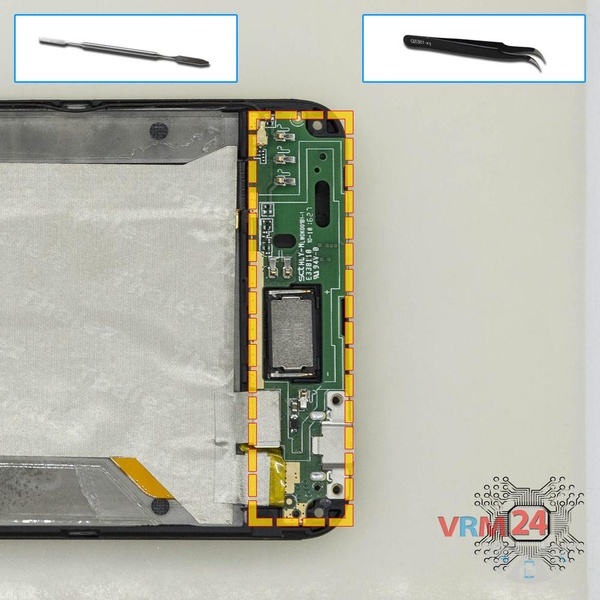

Step 9.

Remove the daughterboard.

How to disassemble HTC Desire 820, Step 10/1 How to disassemble HTC Desire 820, Step 10/2

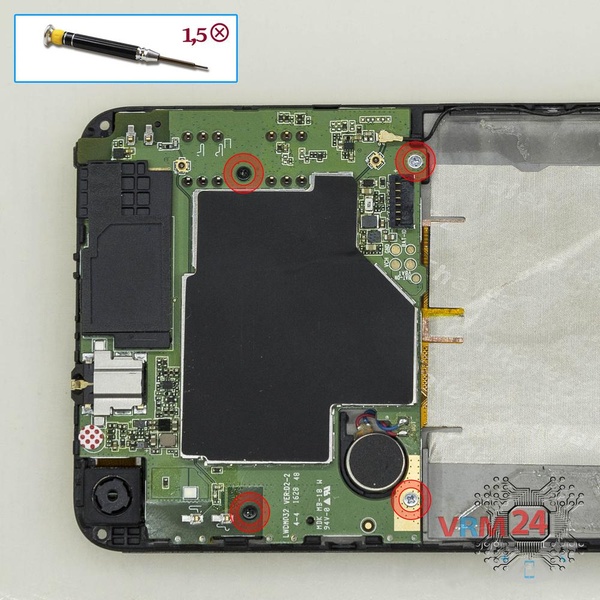

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble HTC Desire 820, Step 11/1 How to disassemble HTC Desire 820, Step 11/2

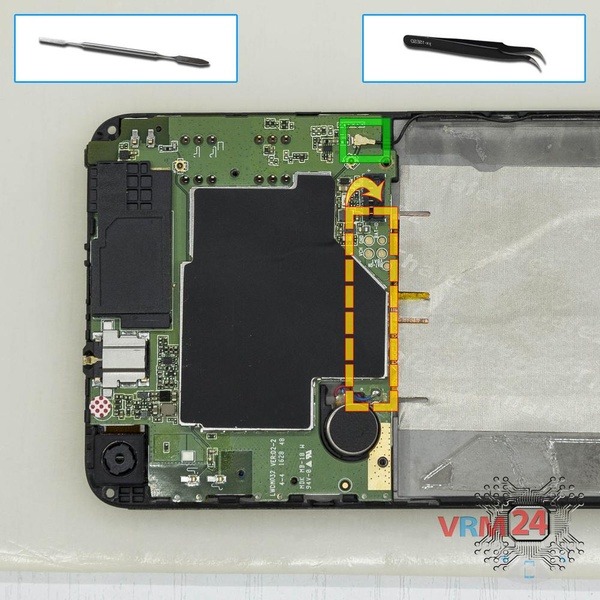

Step 11.

Disconnect connectors on the PCB.

⚠️ Warning!

Two connectors are inside.

How to disassemble HTC Desire 820, Step 12/1 How to disassemble HTC Desire 820, Step 12/2

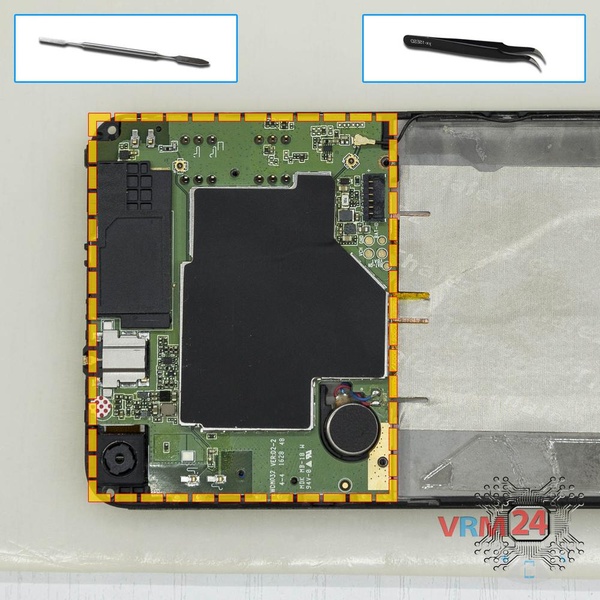

Step 12.

Remove the PCB.

How to disassemble HTC Desire 820, Step 13/1 How to disassemble HTC Desire 820, Step 13/2

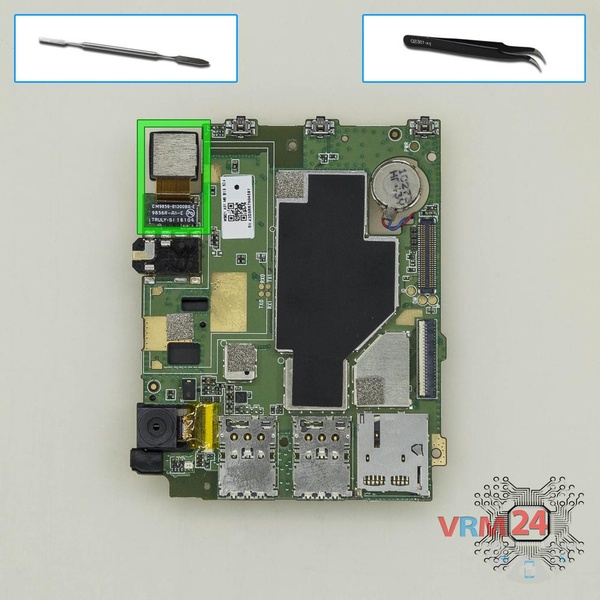

Step 13.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble HTC Desire 820, Step 14/1 How to disassemble HTC Desire 820, Step 14/2

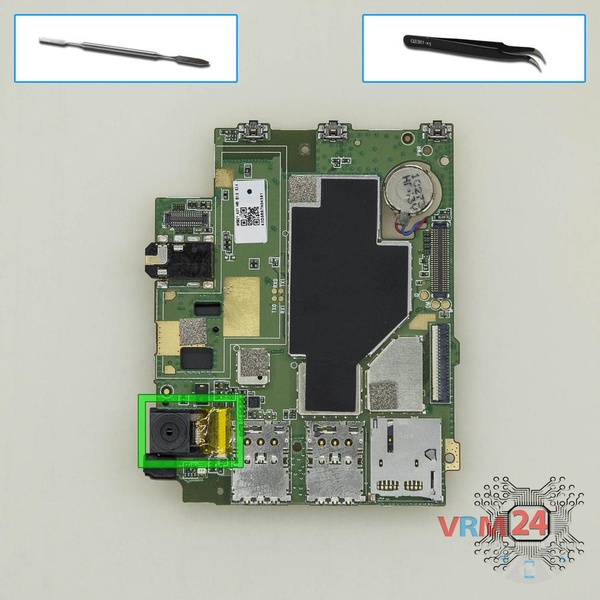

Step 14.

Disconnect the connector on PCB, and remove the front (selfie) camera.

Detailed disassembly instructions of HTC Desire 820 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 820
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models HTC Desire 820 — HTC Desire 820 OPMG200 released for markets in different countries.
