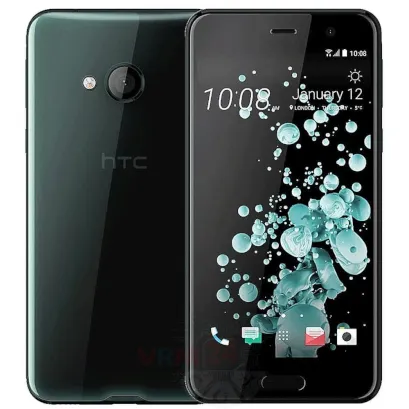

HTC U Play
HTC U Play
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Heat gun Heat gun
Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC U Play (HTC U Play 2pzm100 u-2u) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble HTC U Play, Step 1/1 How to disassemble HTC U Play, Step 1/2

Step 1.

Open the back cover.

How to disassemble HTC U Play, Step 2/1 How to disassemble HTC U Play, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts.

How to disassemble HTC U Play, Step 3/1 How to disassemble HTC U Play, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 2 bolts.

How to disassemble HTC U Play, Step 4/1 How to disassemble HTC U Play, Step 4/2

Step 4.

Remove the cover with NFC.

How to disassemble HTC U Play, Step 5/1 How to disassemble HTC U Play, Step 5/2

Step 5.

Using a screwdriver (hex T5), unscrew 5 bolts in the lower part.

How to disassemble HTC U Play, Step 6/1 How to disassemble HTC U Play, Step 6/2

Step 6.

Pry & remove the cover with antennas.

How to disassemble HTC U Play, Step 7/1 How to disassemble HTC U Play, Step 7/2 How to disassemble HTC U Play, Step 7/3

Step 7.

Disconnect the connector and remove the buzzer (speaker) assembly.

How to disassemble HTC U Play, Step 8/1 How to disassemble HTC U Play, Step 8/2

Step 8.

Disconnect connectors on the lower PCB.

How to disassemble HTC U Play, Step 9/1 How to disassemble HTC U Play, Step 9/2

Step 9.

Remove the lower  PCB.

How to disassemble HTC U Play, Step 10/1 How to disassemble HTC U Play, Step 10/2 How to disassemble HTC U Play, Step 10/3

Step 10.

Disconnect connectors on the PCB.

How to disassemble HTC U Play, Step 11/1 How to disassemble HTC U Play, Step 11/2

Step 11.

Disconnect connector on the PCB and remove the front (selfie) camera.

How to disassemble HTC U Play, Step 12/1 How to disassemble HTC U Play, Step 12/2

Step 12.

Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble HTC U Play, Step 13/1 How to disassemble HTC U Play, Step 13/2

Step 13.

Remove the PCB.

How to disassemble HTC U Play, Step 14/1 How to disassemble HTC U Play, Step 14/2 How to disassemble HTC U Play, Step 14/3

Step 14.

Parts are in the frame of the display module.

Detailed disassembly instructions of HTC U Play in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC U Play
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models HTC U Play — HTC U Play 2pzm100 u-2u released for markets in different countries.
