Disassembly/Repair of the mobile device Huawei Honor 6X (Huawei Honor 6X BLN-L21) with each step description and the required set of tools.

10400

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

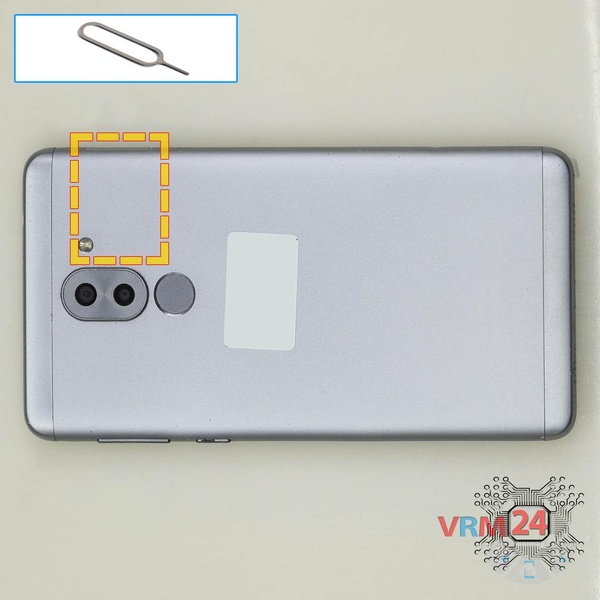

Remove the trays

Step 1.

Remove the trays

Using the key tool, open the SIM and Micro SD cards tray and remove it.

âš  Warning!

Do not push too hard this may cause damage.

Open the back cover

Step 2.

Open the back cover

Open the back cover.

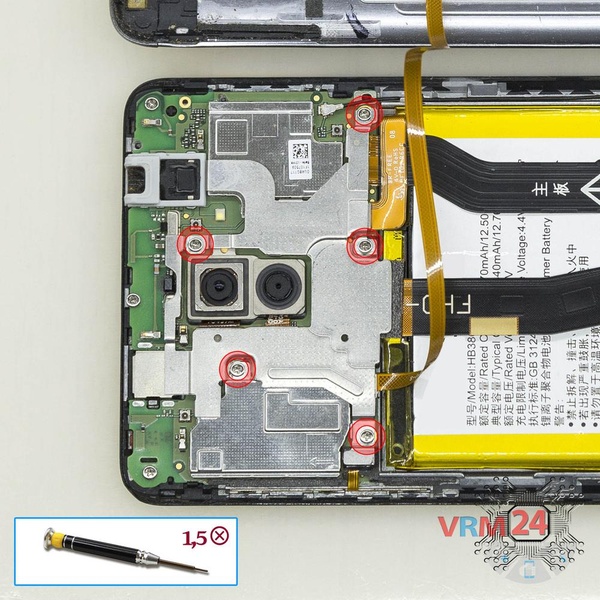

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts.

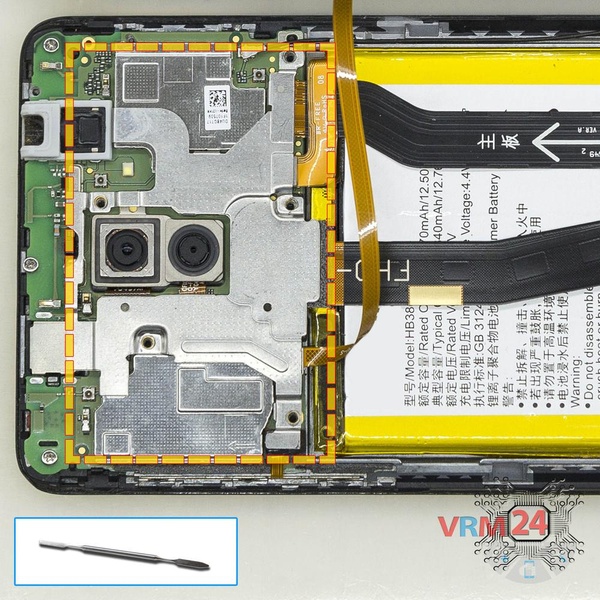

Remove the frame

Step 4.

Remove the frame

Remove the metal frame securing connectors.

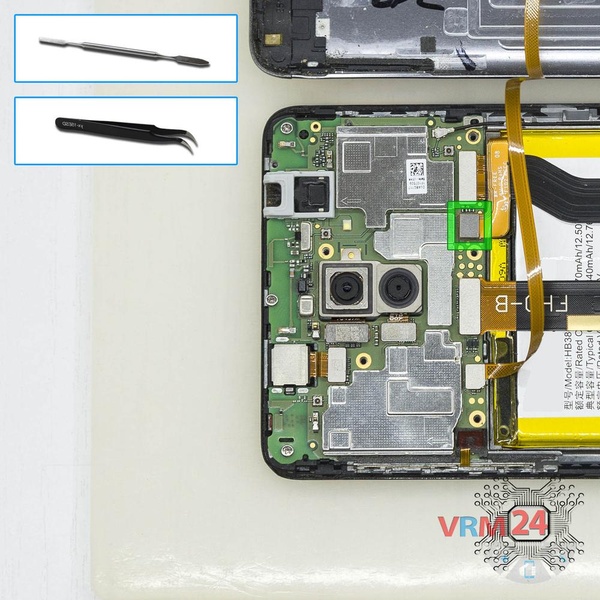

Disconnect the battery connector

Step 5.

Disconnect the battery connector

Disconnect the battery connector.

âš  Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

Open the back cover

Step 6.

Open the back cover

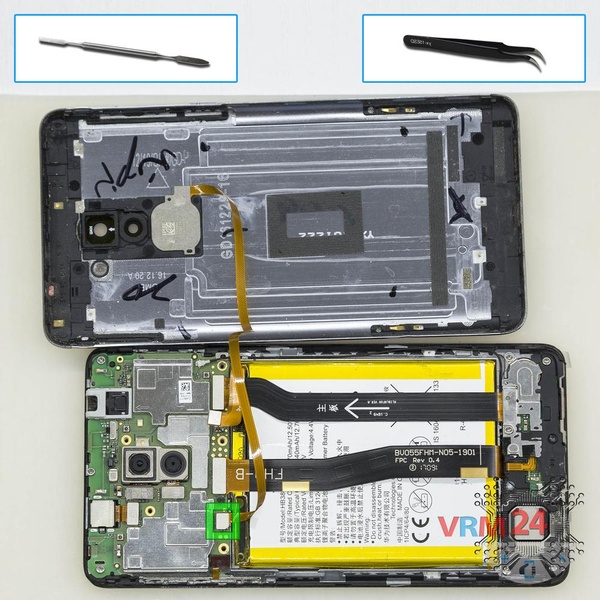

Pry up the connector and remove the back cover.

Remove the cameras

Step 7.

Remove the cameras

Pry up the connectors and remove the rear cameras assembly.

Unscrew the screws

Step 8.

Unscrew the screws

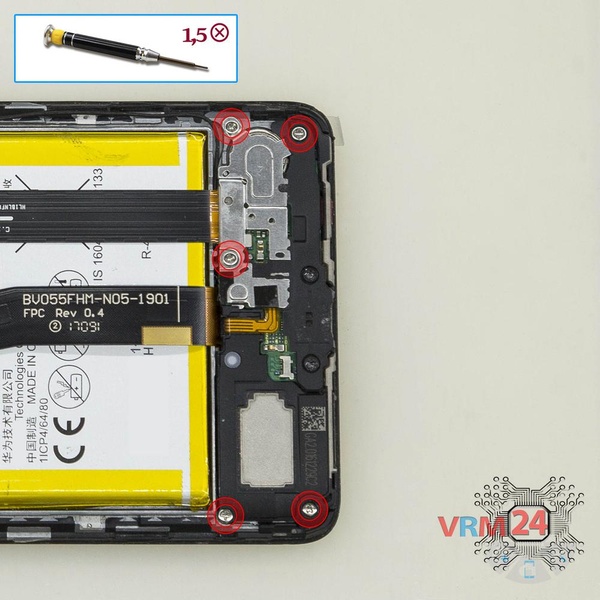

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 short bolts.

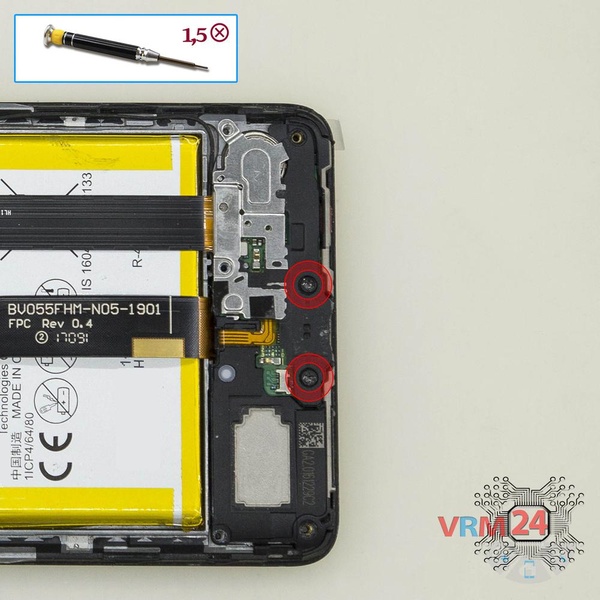

Unscrew the screws

Step 9.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 long bolts.

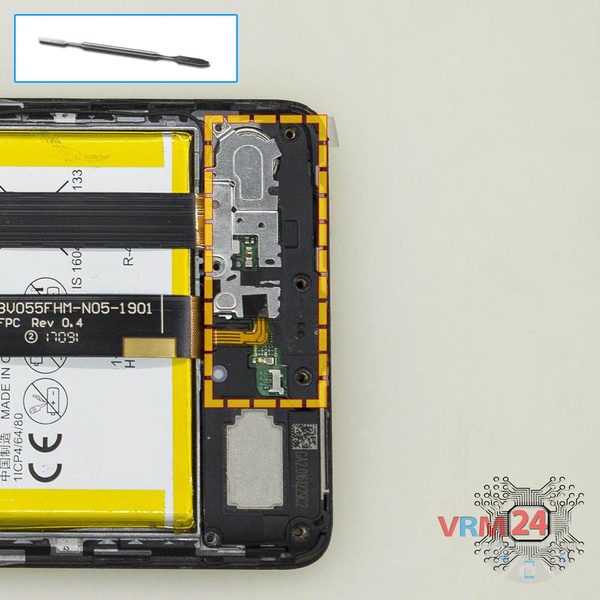

Open the cover

Step 10.

Open the cover

Remove the cover.

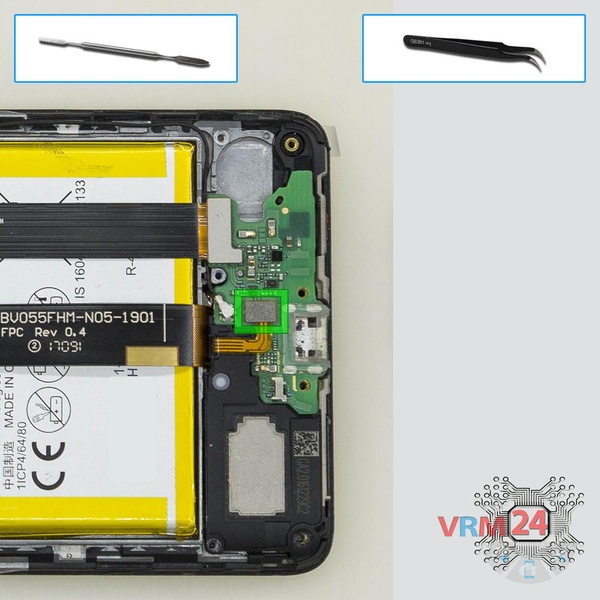

Disconnect the connector

Step 11.

Disconnect the connector

Pry up the buzzer (speaker) connector.

Remove the interconnect cable

Step 12.

Remove the interconnect cable

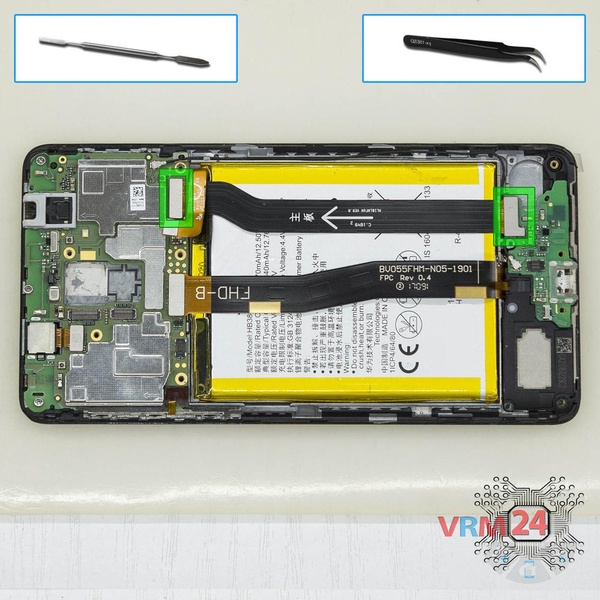

Disconnect connectors and remove the inter-board cable.

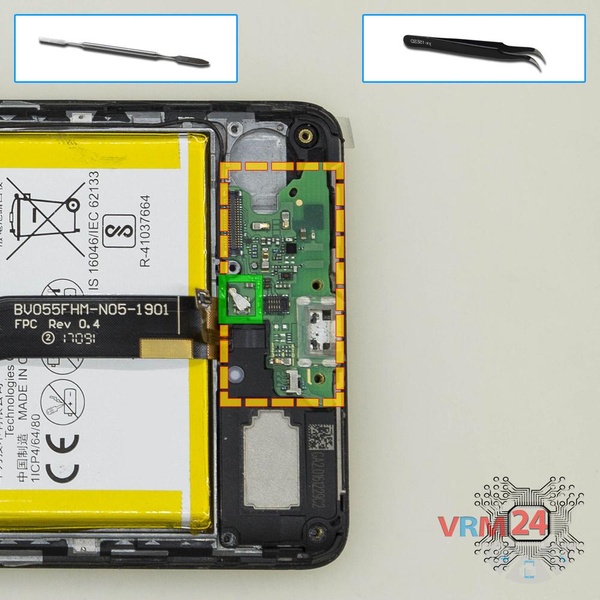

Remove the sub-board

Step 13.

Remove the sub-board

Pry up coaxial cable and remove the daughter board.

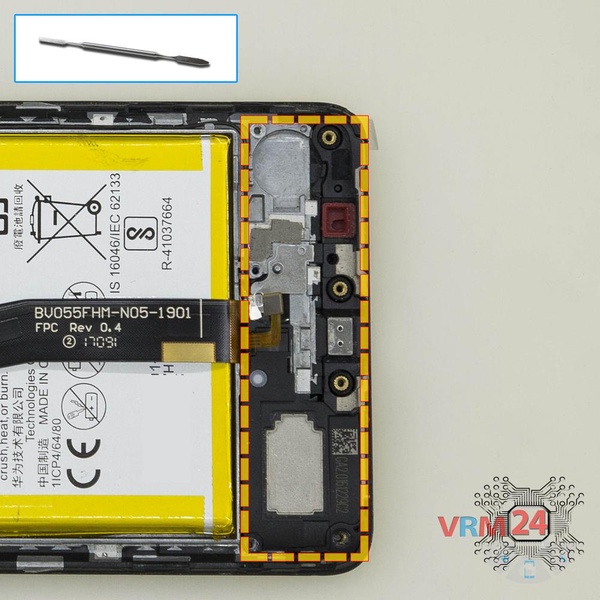

Remove the loudspeaker

Step 14.

Remove the loudspeaker

Remove the buzzer (speaker) assembly.

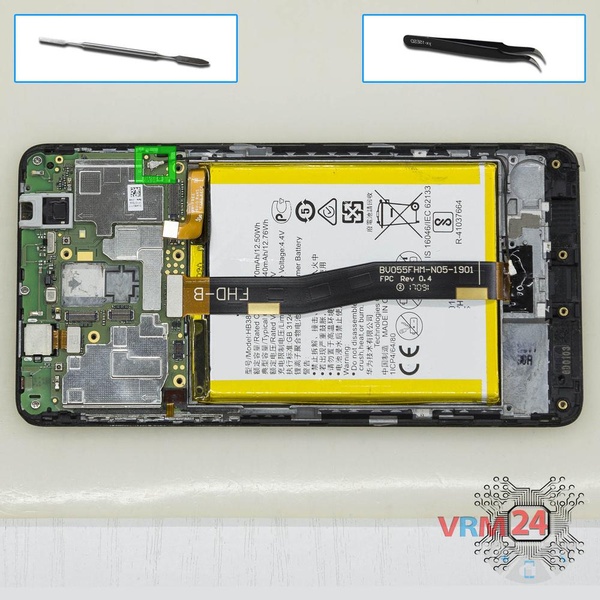

Remove the coaxial cable

Step 15.

Remove the coaxial cable

Pry up the connector and remove the coaxial cable.

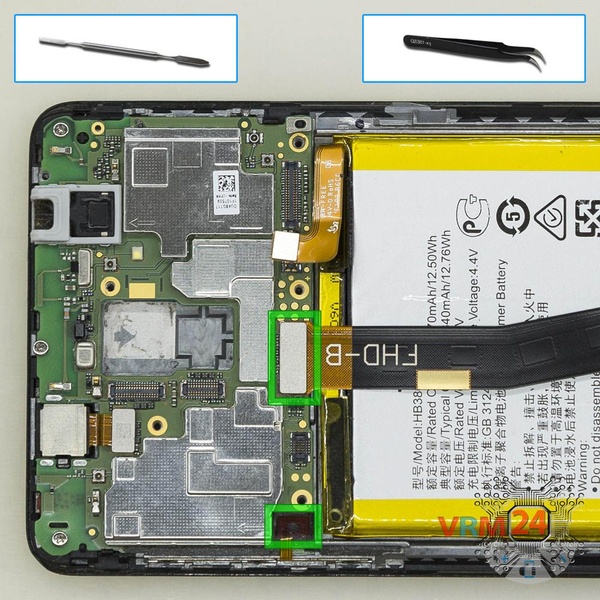

Disconnect the connectors

Step 16.

Disconnect the connectors

Disconnect connectors on the PCB.

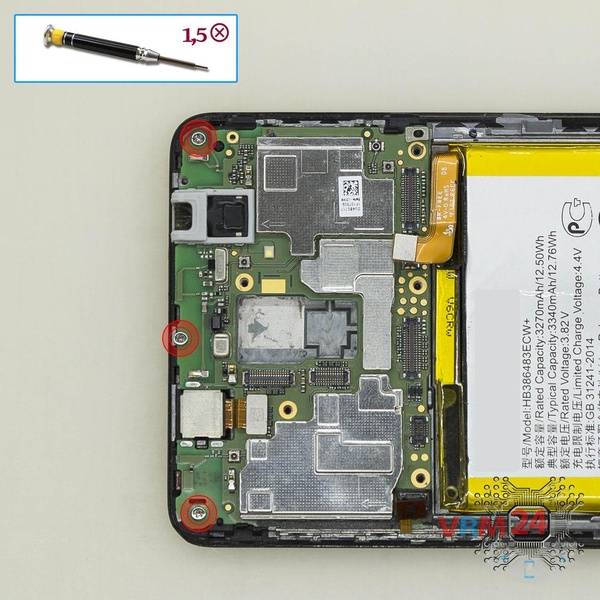

Unscrew one screw

Step 17.

Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

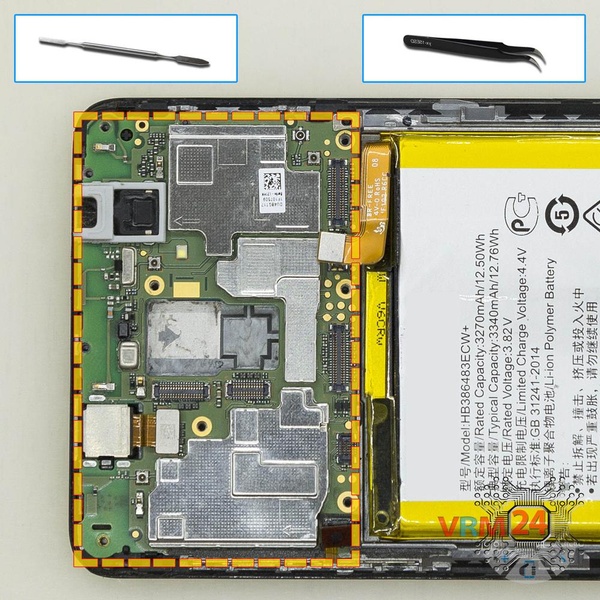

Remove the motherboard

Step 18.

Remove the motherboard

Remove the PCB.

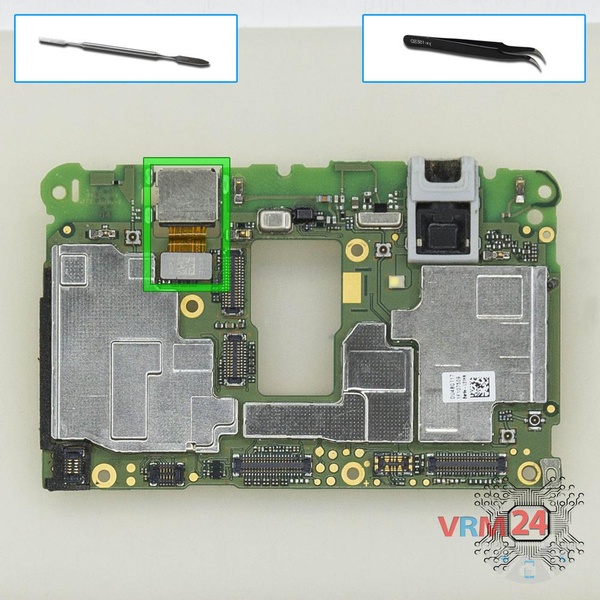

Remove the front camera

Step 19.

Remove the front camera

Disconnect the connector on PCB, and remove the front (selfie) camera.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 9 minutes in time.
Our manual is suitable for all models Huawei Honor 6X — Huawei Honor 6X BLN-L21 released for markets in different countries.

Detailed disassembly instructions of Huawei Honor 6X in the video, made by our mobile repair & service center:
