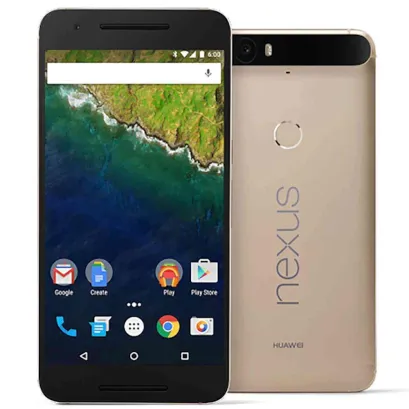

Disassembly/Repair of the mobile device Huawei Nexus 6P (Huawei Nexus 6P H1511 H1512) with each step description and the required set of tools.

7306

Views

Likes

—

Questions

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Step 1.

Remove the tray

Using the key tool, open the SIM and MMC cards tray and remove it.

⚠ Warning!

Do not push too hard this may cause damage.

Step 2.

Open the cover

Unstick the upper cover.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 3.

Open the cover

Unstick the lower cover.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 4.

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

Step 5.

Open the back cover

Open the back cover.

Step 6.

Remove the bracket

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the bracket holds the connectors.

Step 7.

Remove the bracket

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the bracket holds the connectors.

Step 8.

Remove the interconnect cable

Disconnect connectors and remove the inter-board cable.

Step 9.

Remove the coaxial cable

Disconnect connectors and remove the coaxial cable. Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts.

Step 10.

Remove the sub-board

Remove the lower PCB.

Step 11.

Remove the loudspeaker

Pry and remove the buzzer (speaker) assembly.

Step 12.

Remove the coaxial cable

Disconnect connectors and remove the coaxial cable.

Step 13.

Remove the bracket

Using a screwdriver (hex T4), unscrew the 2 bolts and remove the brackets securing the micro and cameras.

Step 14.

Remove the cameras

Disconnect connectors on the PCB and remove the main and front (selfie) cameras.

Step 15.

Remove the motherboard

Remove the PCB.

Step 16.

In the display frame remained

Parts in the frame of the display module.

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 14 minutes in time. Our manual is suitable for all models Huawei Nexus 6P or Huawei Nexus 6P H1511 H1512 released for markets in different countries.
