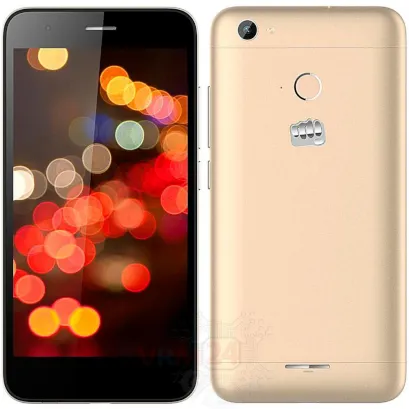

Micromax Canvas Juice 4 Q465
Micromax Canvas Juice 4 Q465
Teardown difficulty:
Moderate
Duration:
10 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Micromax Canvas Juice 4 Q465 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Micromax Canvas Juice 4 Q465, Step 1/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 1/2

Step 1.

Open the back cover.

How to disassemble Micromax Canvas Juice 4 Q465, Step 2/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 2/2

Step 2.

Peel back the protective layer.

How to disassemble Micromax Canvas Juice 4 Q465, Step 3/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Micromax Canvas Juice 4 Q465, Step 4/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Micromax Canvas Juice 4 Q465, Step 5/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 5/2

Step 5.

Pry and remove the buzzer (speaker).

How to disassemble Micromax Canvas Juice 4 Q465, Step 6/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 6/2 How to disassemble Micromax Canvas Juice 4 Q465, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble Micromax Canvas Juice 4 Q465, Step 7/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 7/2 How to disassemble Micromax Canvas Juice 4 Q465, Step 7/3

Step 7.

Disconnect connectors on the lower PCB and pry up the vibration motor.

How to disassemble Micromax Canvas Juice 4 Q465, Step 8/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble Micromax Canvas Juice 4 Q465, Step 9/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Micromax Canvas Juice 4 Q465, Step 10/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 10/2

Step 10.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Micromax Canvas Juice 4 Q465, Step 11/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Micromax Canvas Juice 4 Q465, Step 12/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 12/2 How to disassemble Micromax Canvas Juice 4 Q465, Step 12/3

Step 12.

Disconnect connectors on the PCB.

How to disassemble Micromax Canvas Juice 4 Q465, Step 13/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 13/2 How to disassemble Micromax Canvas Juice 4 Q465, Step 13/3

Step 13.

Turn over PCB, disconnect the connector of the coaxial cable from the inside and remove the board.

How to disassemble Micromax Canvas Juice 4 Q465, Step 14/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 14/2

Step 14.

Remove the inter-board and coaxial cables.

How to disassemble Micromax Canvas Juice 4 Q465, Step 15/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 15/2

Step 15.

Pry & remove the power & volume buttons flex cable.

How to disassemble Micromax Canvas Juice 4 Q465, Step 16/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 16/2

Step 16.

Pry and remove the earpiece (speaker).

How to disassemble Micromax Canvas Juice 4 Q465, Step 17/1 How to disassemble Micromax Canvas Juice 4 Q465, Step 17/2 How to disassemble Micromax Canvas Juice 4 Q465, Step 17/3

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Micromax Canvas Juice 4 Q465 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Micromax #Micromax Canvas Juice 4 Q465
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models Micromax Canvas Juice 4 Q465 released for markets in different countries.
