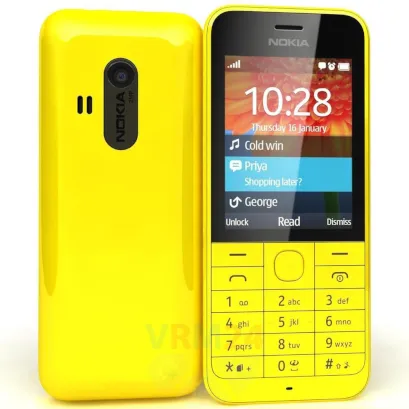

Nokia 220 RM-970
Nokia 220 RM-970
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 220 RM-970 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia 220 RM-970, Step 1/1 How to disassemble Nokia 220 RM-970, Step 1/2

Step 1.

Open the back cover.

How to disassemble Nokia 220 RM-970, Step 2/1 How to disassemble Nokia 220 RM-970, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Nokia 220 RM-970, Step 3/1 How to disassemble Nokia 220 RM-970, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 4 bolts.

How to disassemble Nokia 220 RM-970, Step 4/1

Step 4.

Pry and remove the front frame.

How to disassemble Nokia 220 RM-970, Step 5/1

Step 5.

Pry and remove the middle frame with the vibration motor, speaker and headphone jack/socket.

How to disassemble Nokia 220 RM-970, Step 6/1 How to disassemble Nokia 220 RM-970, Step 6/2

Step 6.

Remove the metal frame.

How to disassemble Nokia 220 RM-970, Step 7/1 How to disassemble Nokia 220 RM-970, Step 7/2

Step 7.

Remove the display.

How to disassemble Nokia 220 RM-970, Step 8/1 How to disassemble Nokia 220 RM-970, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the camera.

Detailed disassembly instructions of Nokia 220 RM-970 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia 220 RM-970
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia 220 RM-970 released for markets in different countries.
