Disassembly/Repair of the mobile device Xiaomi Mi Play (Xiaomi Mi Play M1901F9E) with each step description and the required set of tools.

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

Using a spudger or a plastic pick, carefully, around the edge, detach the back cover clips, and turn it over.

Do not insert the tool deeply or bend it. Otherwise, the housing may be tampered with or damaged.

⚠️️ Be careful when opening the cover from the volume and power buttons side. Thin cable and fragile buttons are straightforward to damage.

⚠️️ Pay attention to the fingerprint sensor cable located on the inside.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the two screws and remove the bracket holding the connectors.

Pry up the fingerprint sensor connector and remove the back cover.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the two screws and remove the bracket holding the connectors.

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The Xiaomi Mi Play model has a battery BN39 with 3000 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the six screws.

Pry over the edge and remove the loudspeaker assembly with antenna tracks.

Disconnect the coaxial cable connector, inter-board cable connector.

⚠️️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

Carefully, preferably from the edge, disconnect the connector and remove the inter-board cable connecting the mainboard to the daughterboard (also known as the sub-board).

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

ℹ️️ An arrow on the FFC cable (flexible flat cable) indicates its correct position.

Pry up the connectors of the display module cable, coaxial cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

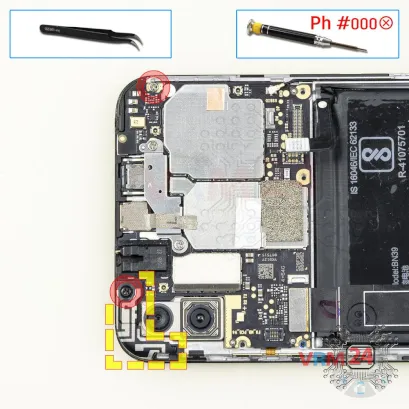

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the two screws and remove the cover with antenna tracks.

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the two screws and remove the bracket holding the front camera and earpiece speaker.

Disconnect the connector on the motherboard, and remove the front (selfie) camera.

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

Disconnect connectors on the motherboard and remove the assembly of the two rear cameras.
