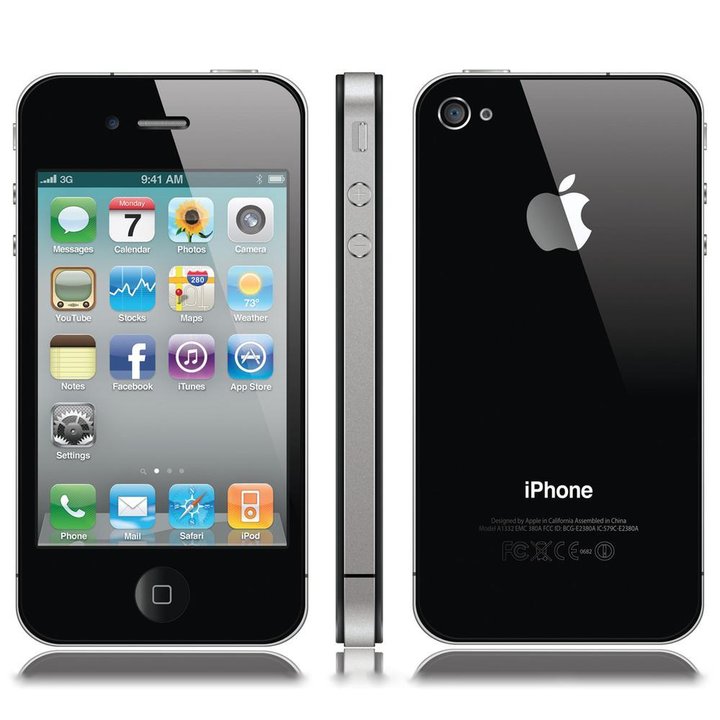

Apple iPhone 4
Apple iPhone 4
Teardown difficulty:
Moderate
Duration:
6 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Apple iPhone 4 (iPhone 4 A1332, A1349) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Apple iPhone 4, Step 1/1 How to disassemble Apple iPhone 4, Step 1/2

Step 1.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Apple iPhone 4, Step 2/1 How to disassemble Apple iPhone 4, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Apple iPhone 4, Step 3/1 How to disassemble Apple iPhone 4, Step 3/2

Step 3.

Open the back cover.

How to disassemble Apple iPhone 4, Step 4/1 How to disassemble Apple iPhone 4, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the connector holder and battery.

How to disassemble Apple iPhone 4, Step 5/1 How to disassemble Apple iPhone 4, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 bolts and remove the flat holder.

How to disassemble Apple iPhone 4, Step 6/1 How to disassemble Apple iPhone 4, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the lower part (enclosure).

How to disassemble Apple iPhone 4, Step 7/1 How to disassemble Apple iPhone 4, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm), unscrew 5 bolts and remove the EMI shield.

How to disassemble Apple iPhone 4, Step 8/1 How to disassemble Apple iPhone 4, Step 8/2

Step 8.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Apple iPhone 4, Step 9/1 How to disassemble Apple iPhone 4, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts.

How to disassemble Apple iPhone 4, Step 10/1 How to disassemble Apple iPhone 4, Step 10/2 How to disassemble Apple iPhone 4, Step 10/3 How to disassemble Apple iPhone 4, Step 10/4 How to disassemble Apple iPhone 4, Step 10/5

Step 10.

Disconnect connectors on the PCB.

How to disassemble Apple iPhone 4, Step 11/1 How to disassemble Apple iPhone 4, Step 11/2

Step 11.

Remove the PCB.

How to disassemble Apple iPhone 4, Step 12/1 How to disassemble Apple iPhone 4, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts. Remove the ear speaker & vibrator motor.

How to disassemble Apple iPhone 4, Step 13/1 How to disassemble Apple iPhone 4, Step 13/2 How to disassemble Apple iPhone 4, Step 13/3

Step 13.

Parts in the housing.

Detailed disassembly instructions of Apple iPhone 4 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Apple #Apple iPhone 4
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 6 minutes in time.
Our manual is suitable for all models Apple iPhone 4 — iPhone 4 A1332, A1349 released for markets in different countries.
