Disassembly/Repair of the mobile device Explay Blaze with each step description and the required set of tools.

4003

Views

—

Share

3

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

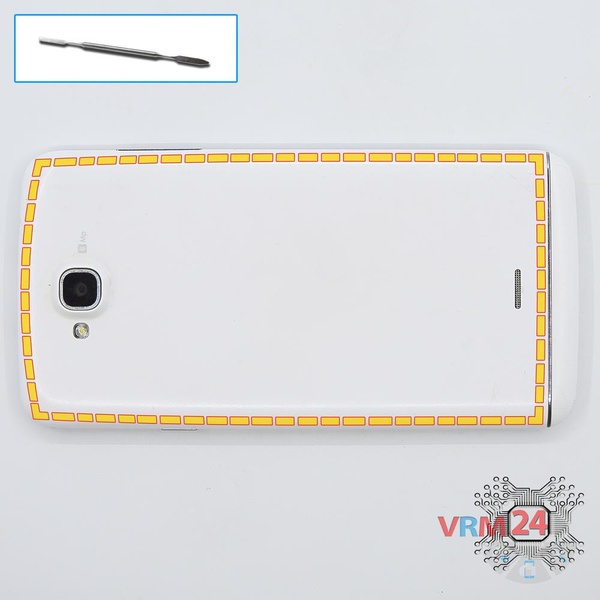

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

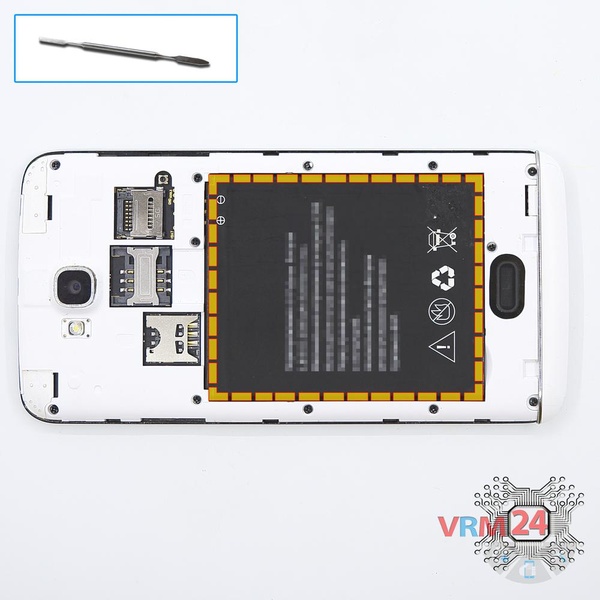

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

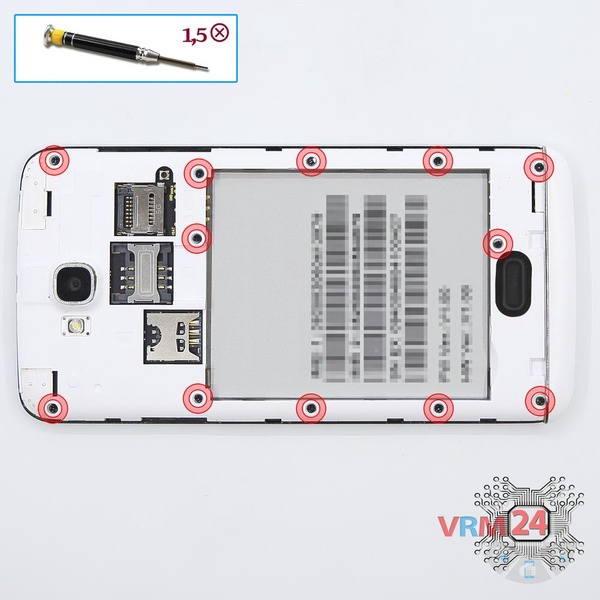

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

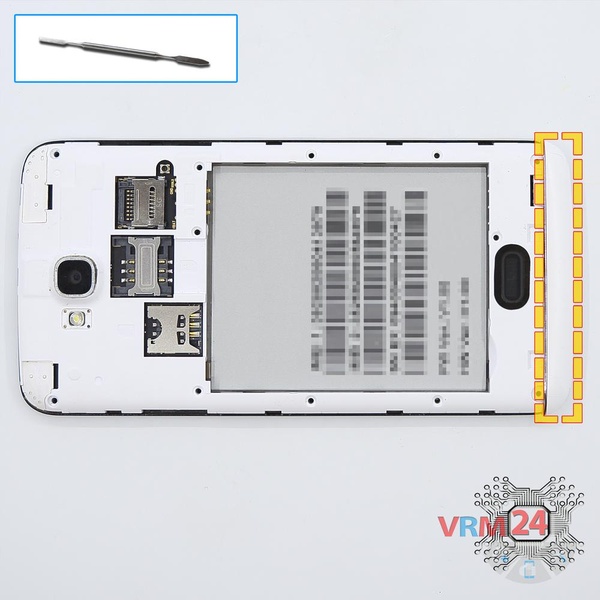

Open the cover

Step 4.

Open the cover

Remove the cover in the lower part.

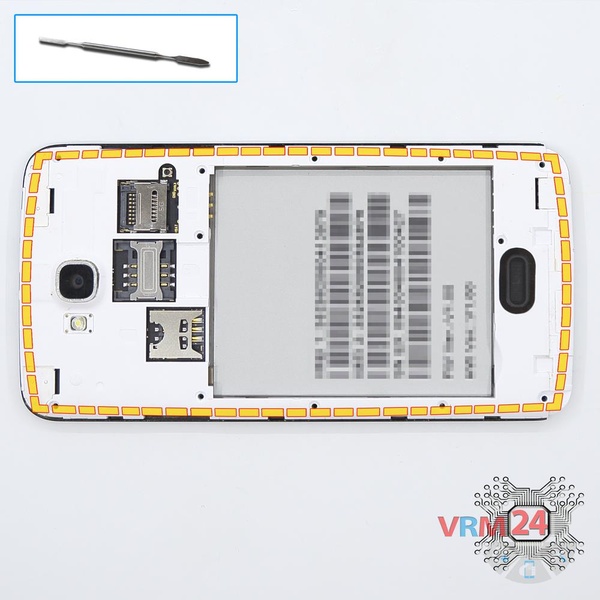

Open the mid-frame

Step 5.

Open the mid-frame

Pry and remove the middle frame.

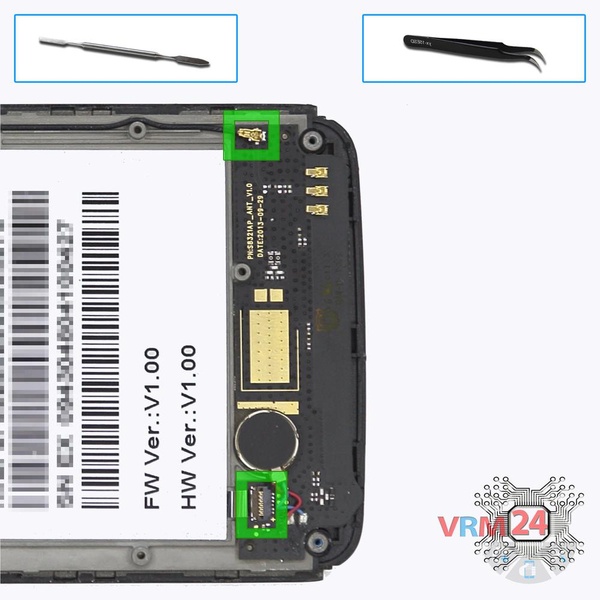

Remove the sub-board

Step 6.

Remove the sub-board

Disconnect connectors on the lower PCB and remove it.

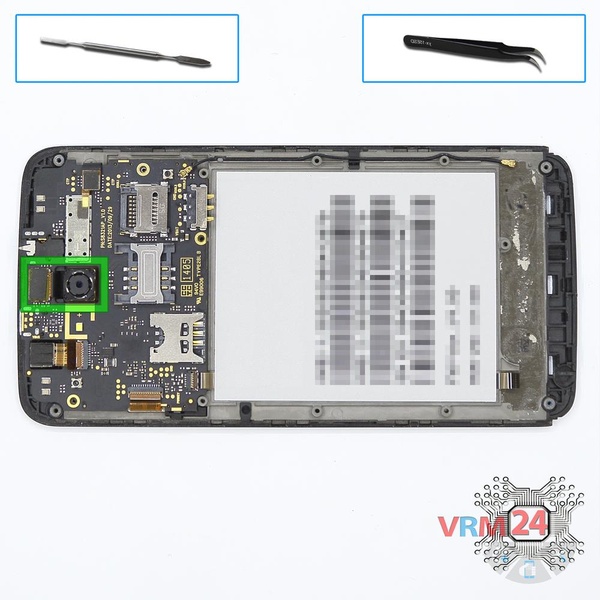

Remove the rear camera

Step 7.

Remove the rear camera

Disconnect connector on the PCB and remove the main camera.

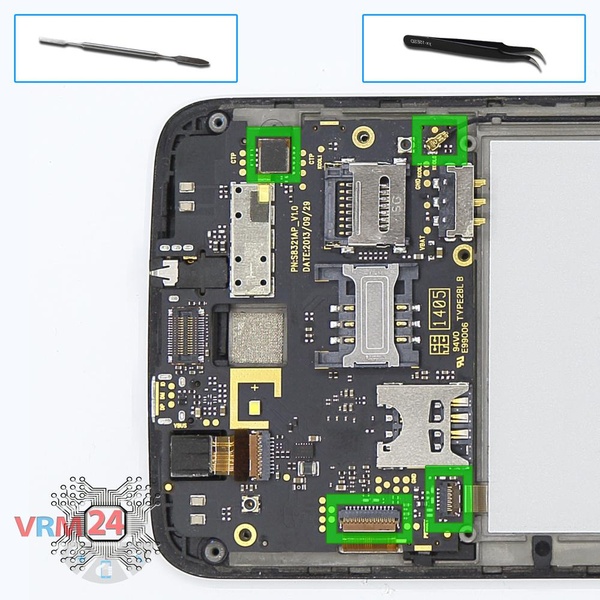

Disconnect the connectors

Step 8.

Disconnect the connectors

Disconnect connectors on the PCB.

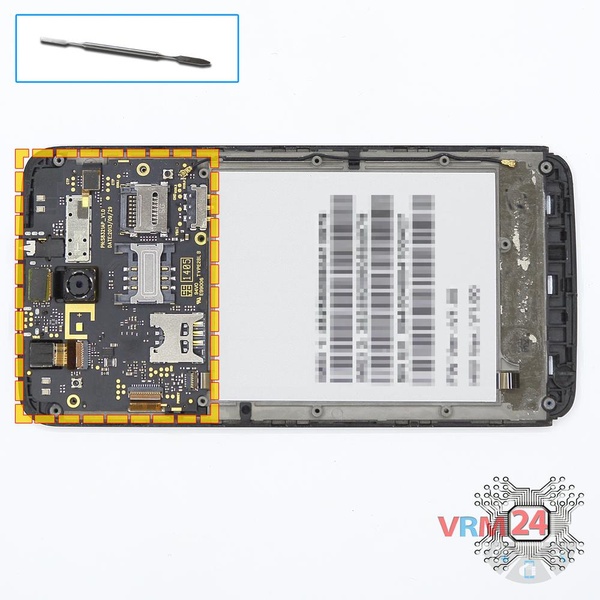

Remove the motherboard

Step 9.

Remove the motherboard

Remove the PCB.

In the display frame remained

Step 10.

In the display frame remained

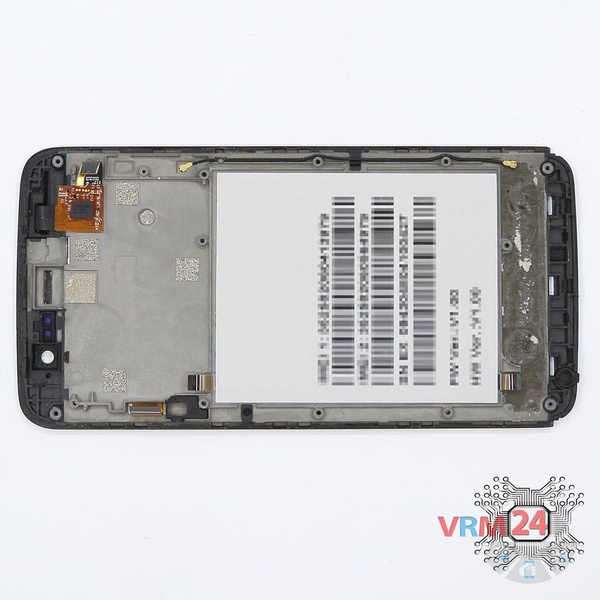

Parts in the frame of the display module.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 4 minutes in time. Our manual is suitable for all models Explay Blaze or Эксплей Блэйз released for markets in different countries.
#instructions #Explay #Explay Blaze
Detailed disassembly instructions of Explay Blaze in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
