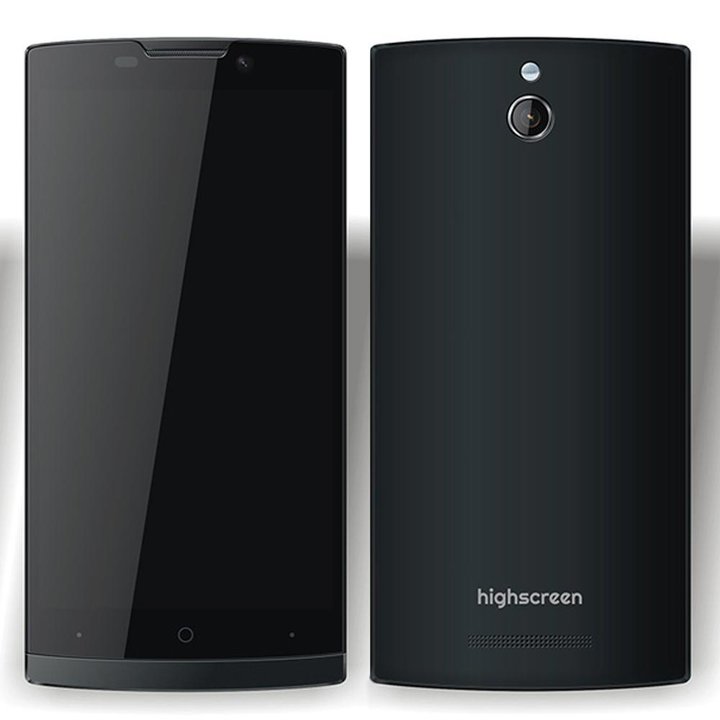

Highscreen Boost 2 SE
Highscreen Boost 2 SE
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Highscreen Boost 2 SE with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Highscreen Boost 2 SE, Step 1/1 How to disassemble Highscreen Boost 2 SE, Step 1/2

Step 1.

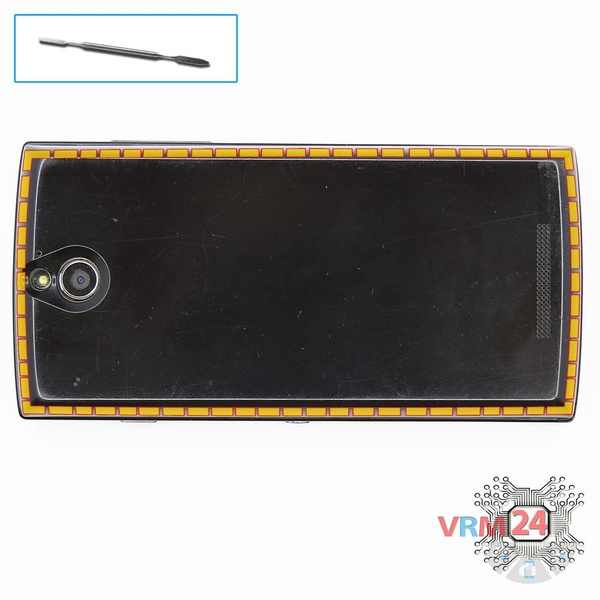

Open the back cover.

How to disassemble Highscreen Boost 2 SE, Step 2/1 How to disassemble Highscreen Boost 2 SE, Step 2/2

Step 2.

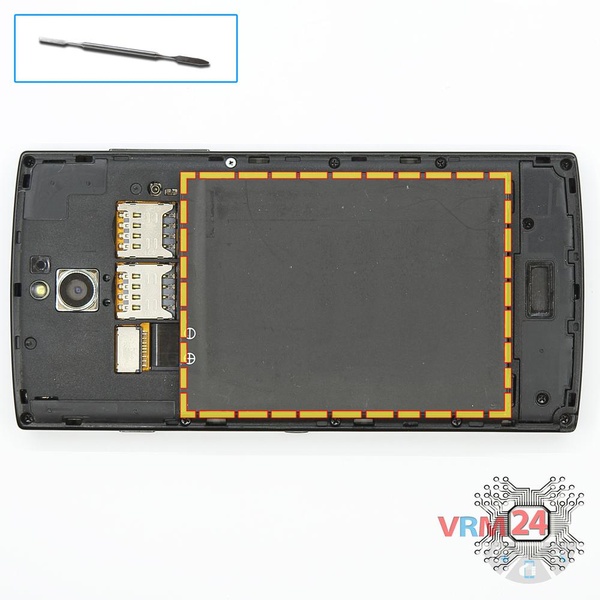

Lift and remove the battery.

How to disassemble Highscreen Boost 2 SE, Step 3/1 How to disassemble Highscreen Boost 2 SE, Step 3/2

Step 3.

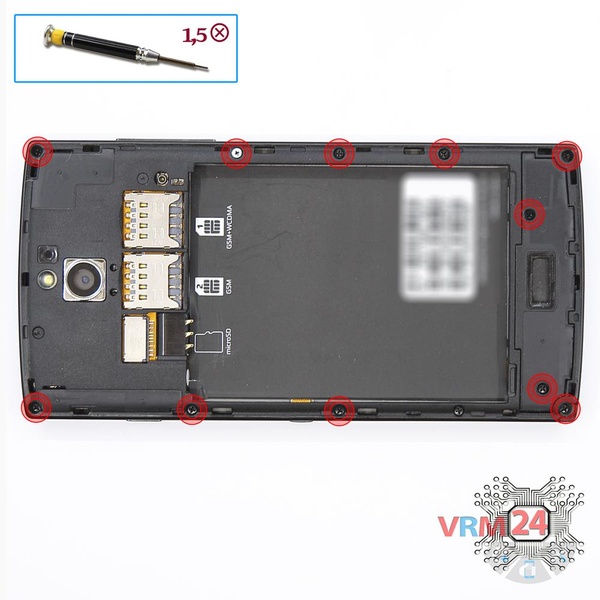

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Highscreen Boost 2 SE, Step 4/1 How to disassemble Highscreen Boost 2 SE, Step 4/2

Step 4.

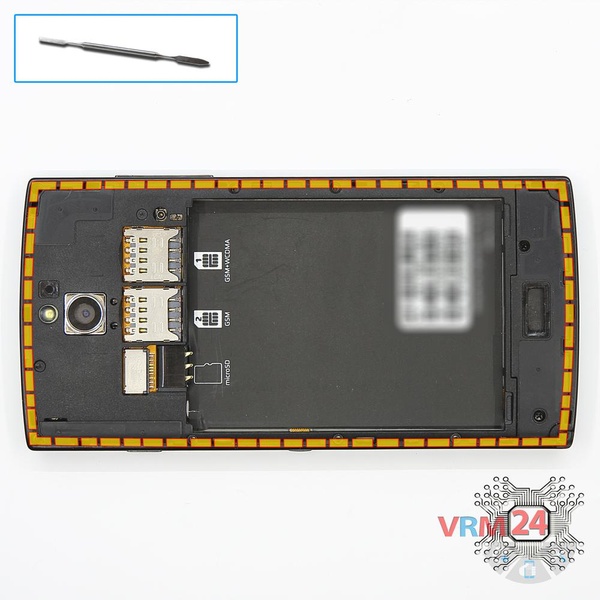

Pry and remove the middle frame.

How to disassemble Highscreen Boost 2 SE, Step 5/1 How to disassemble Highscreen Boost 2 SE, Step 5/2

Step 5.

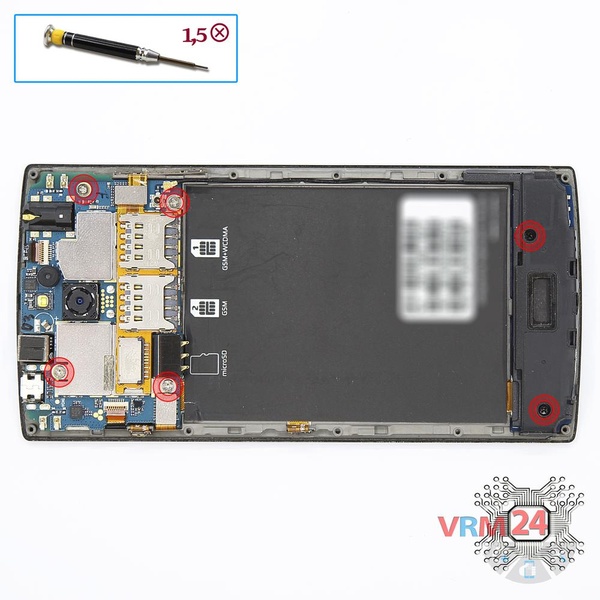

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the main PCB & 2 bolts in the lower PCB.

How to disassemble Highscreen Boost 2 SE, Step 6/1 How to disassemble Highscreen Boost 2 SE, Step 6/2

Step 6.

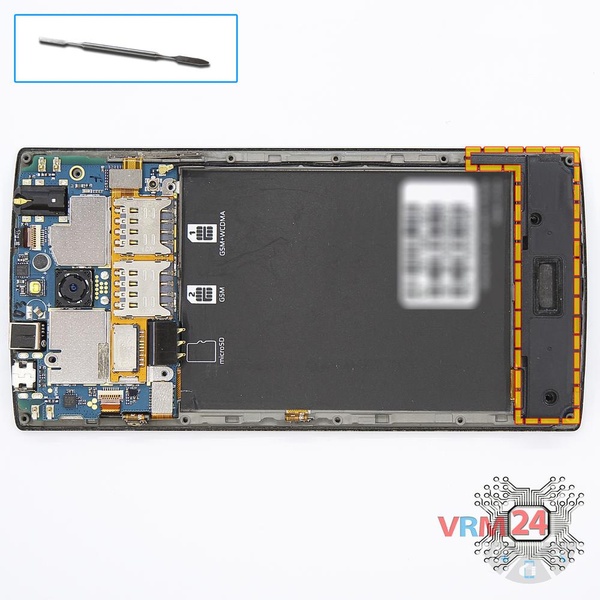

Pry and remove the buzzer (speaker) assembly.

How to disassemble Highscreen Boost 2 SE, Step 7/1 How to disassemble Highscreen Boost 2 SE, Step 7/2

Step 7.

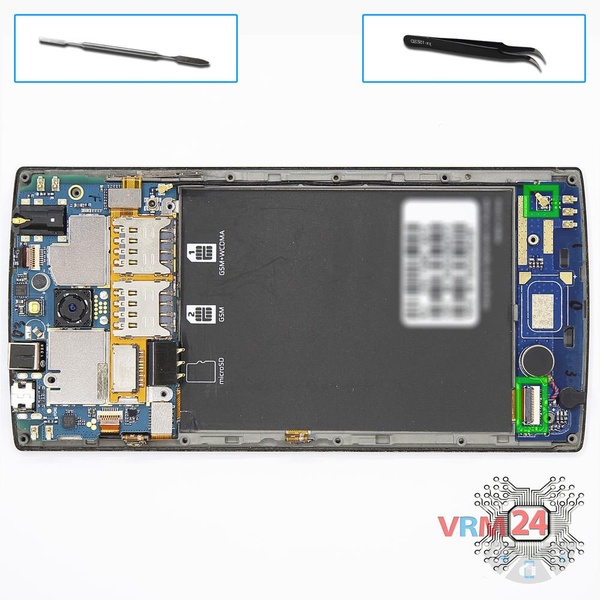

Disconnect connectors on the lower PCB and remove it.

How to disassemble Highscreen Boost 2 SE, Step 8/1 How to disassemble Highscreen Boost 2 SE, Step 8/2 How to disassemble Highscreen Boost 2 SE, Step 8/3

Step 8.

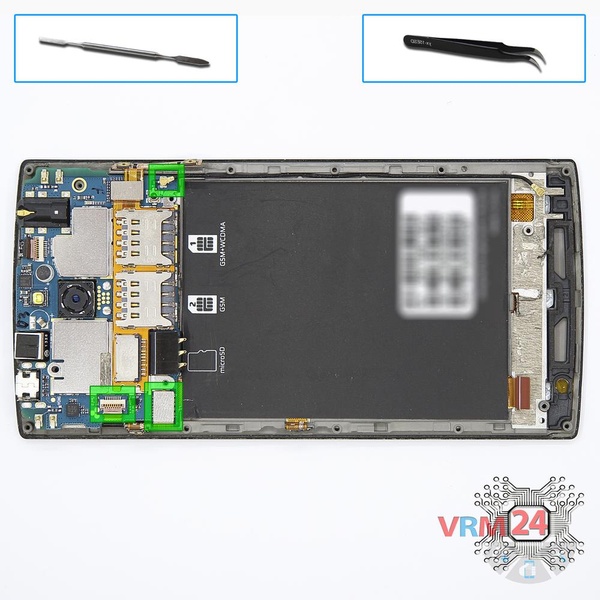

Disconnect connectors on the PCB.

How to disassemble Highscreen Boost 2 SE, Step 9/1 How to disassemble Highscreen Boost 2 SE, Step 9/2

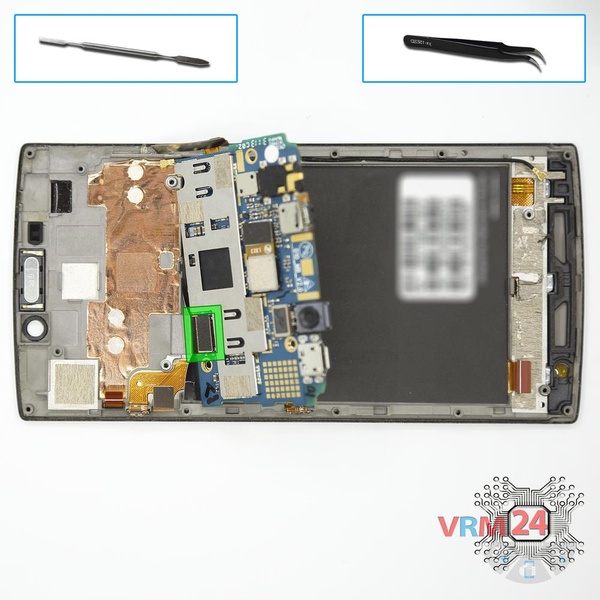

Step 9.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Highscreen Boost 2 SE, Step 10/1 How to disassemble Highscreen Boost 2 SE, Step 10/2 How to disassemble Highscreen Boost 2 SE, Step 10/3

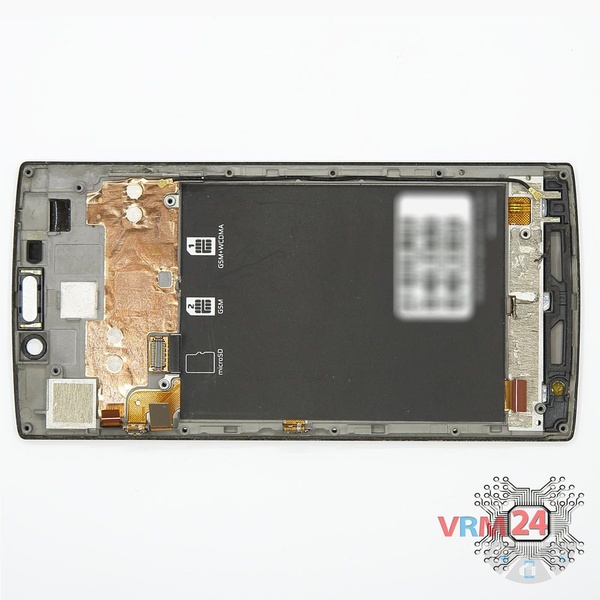

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Highscreen Boost 2 SE in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Highscreen #Highscreen Boost 2 SE
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Highscreen Boost 2 SE released for markets in different countries.
