HTC Desire 728
HTC Desire 728
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device HTC Desire 728 (HTC Desire 728G) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble HTC Desire 728, Step 1/1 How to disassemble HTC Desire 728, Step 1/2

Step 1.

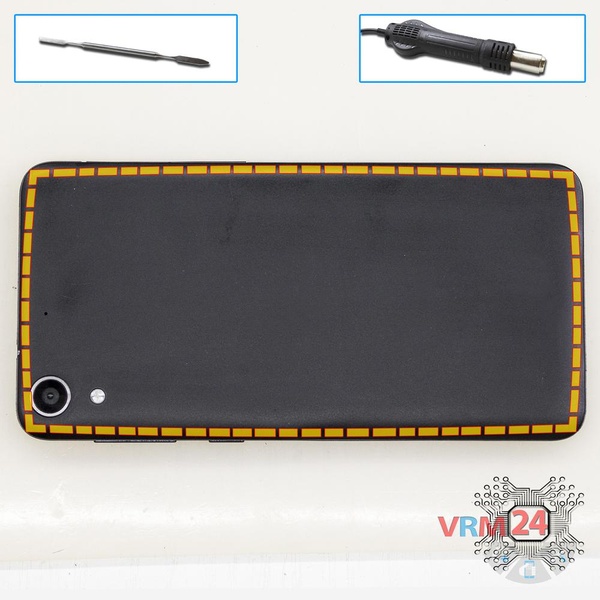

Open the back cover.

⚠️ Warning!

 For careful separation, we recommend using a hairdryer. At the same time, it is necessary to heat carefully in order not to damage the surface of the device.

How to disassemble HTC Desire 728, Step 2/1 How to disassemble HTC Desire 728, Step 2/2

Step 2.

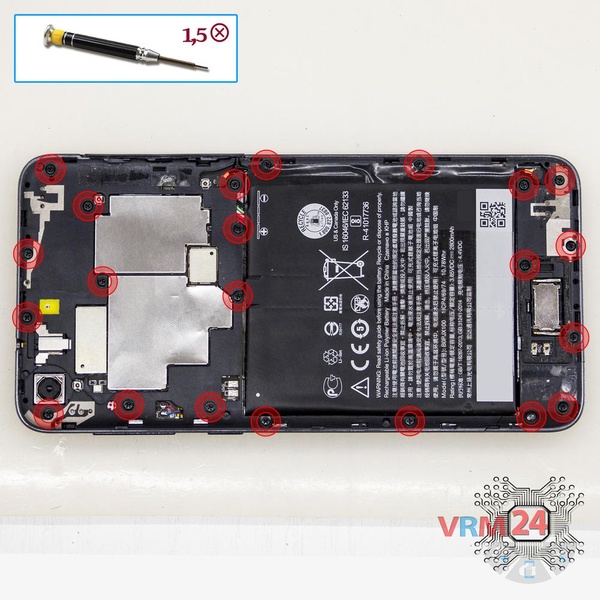

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 22 bolts in the frame of the phone.

How to disassemble HTC Desire 728, Step 3/1 How to disassemble HTC Desire 728, Step 3/2

Step 3.

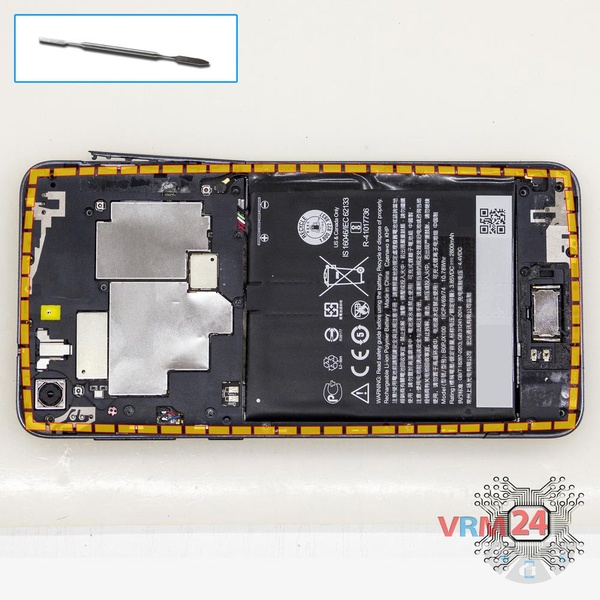

Pry and remove the middle frame.

How to disassemble HTC Desire 728, Step 4/1 How to disassemble HTC Desire 728, Step 4/2 How to disassemble HTC Desire 728, Step 4/3 How to disassemble HTC Desire 728, Step 4/4

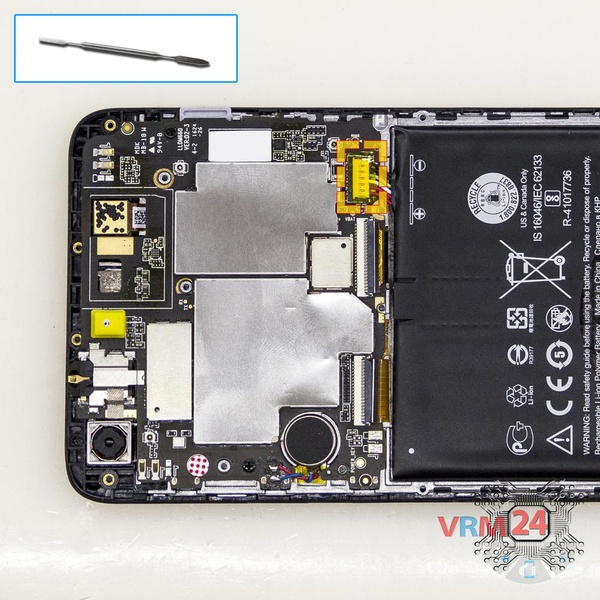

Step 4.

Remove the protective film and battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble HTC Desire 728, Step 5/1 How to disassemble HTC Desire 728, Step 5/2

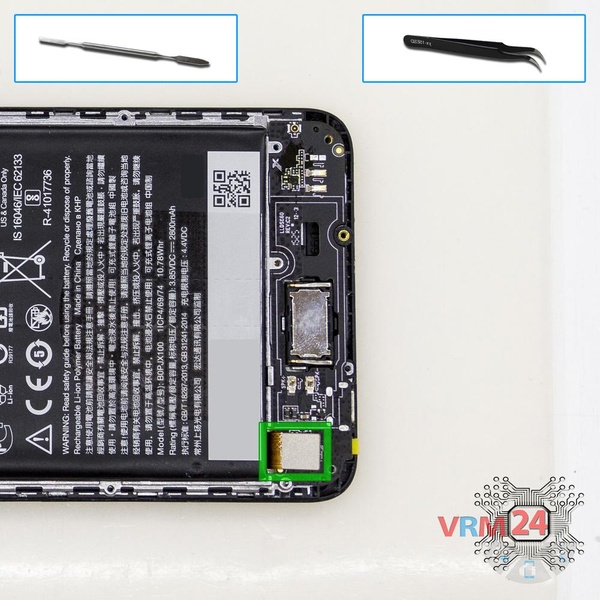

Step 5.

Disconnect the connector on the lower PCB.

How to disassemble HTC Desire 728, Step 6/1 How to disassemble HTC Desire 728, Step 6/2

Step 6.

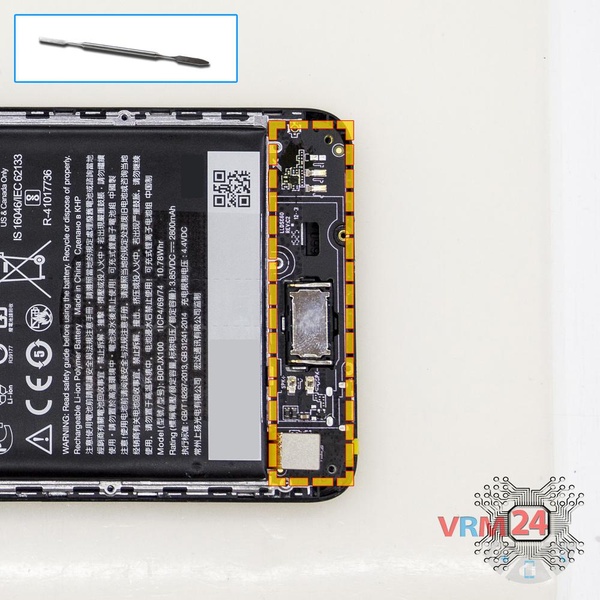

Remove the lower PCB.

How to disassemble HTC Desire 728, Step 7/1 How to disassemble HTC Desire 728, Step 7/2

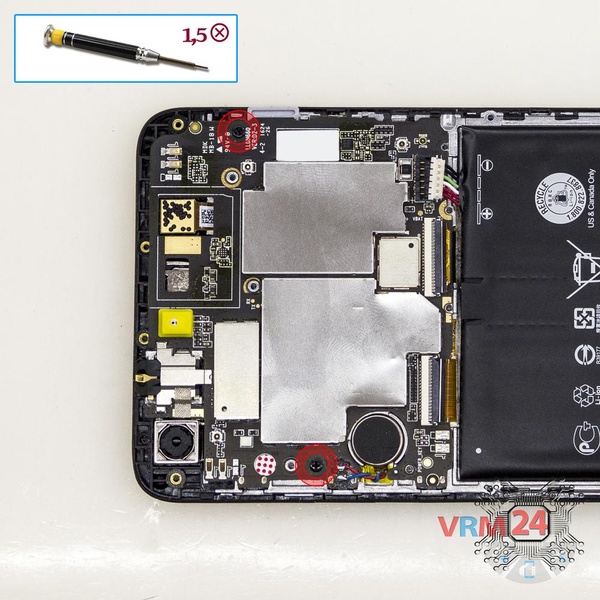

Step 7.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 2 bolts in the PCB.

How to disassemble HTC Desire 728, Step 8/1 How to disassemble HTC Desire 728, Step 8/2 How to disassemble HTC Desire 728, Step 8/3

Step 8.

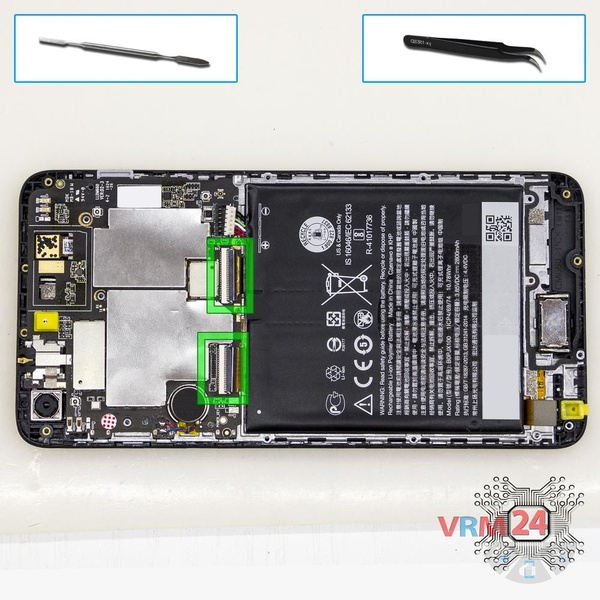

Disconnect the connectors on PCB.

How to disassemble HTC Desire 728, Step 9/1 How to disassemble HTC Desire 728, Step 9/2

Step 9.

Remove the PCB.

How to disassemble HTC Desire 728, Step 10/1 How to disassemble HTC Desire 728, Step 10/2 How to disassemble HTC Desire 728, Step 10/3

Step 10.

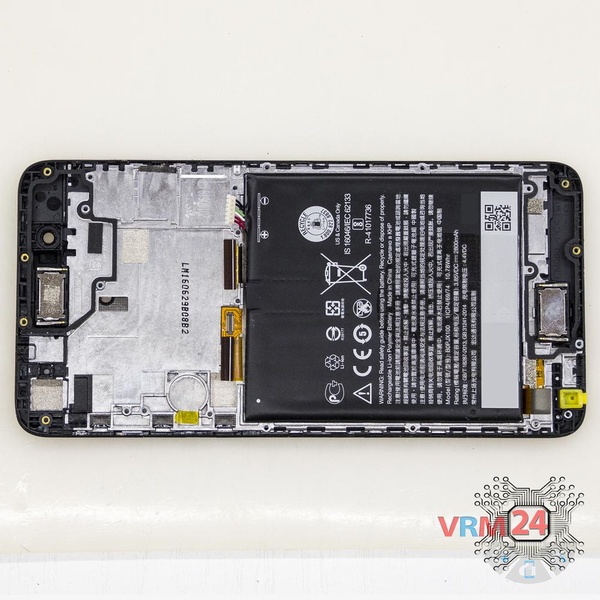

Parts in the frame of the display module.

Detailed disassembly instructions of HTC Desire 728 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HTC #HTC Desire 728
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models HTC Desire 728 — HTC Desire 728G released for markets in different countries.
