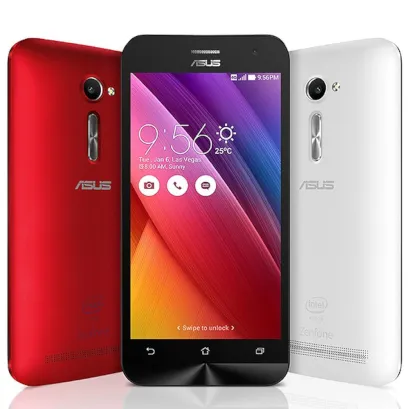

Asus ZenFone 2 ZE500Cl
Asus ZenFone 2 ZE500Cl
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

Disassembly/Repair of the mobile device Asus ZenFone 2 ZE500Cl with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Asus ZenFone 2 ZE500Cl, Step 1/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 2/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 3/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 4/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 4/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 4/3

Step 4.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 5/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 5/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 5/3

Step 5.

Disconnect connector of inter-board cable.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 6/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 6/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 6/3

Step 6.

Pry and remove the lower board.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 7/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 7/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 7/3

Step 7.

Unstick the cable and remove the battery.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 8/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 8/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 8/3

Step 8.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 9/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 9/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 9/3

Step 9.

Overturn the main board, disconnect the coaxial cable and remove the PCB.

How to disassemble Asus ZenFone 2 ZE500Cl, Step 10/1 How to disassemble Asus ZenFone 2 ZE500Cl, Step 10/2 How to disassemble Asus ZenFone 2 ZE500Cl, Step 10/3 How to disassemble Asus ZenFone 2 ZE500Cl, Step 10/4 How to disassemble Asus ZenFone 2 ZE500Cl, Step 10/5

Step 10.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone 2 ZE500Cl in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone 2 ZE500Cl
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus ZenFone 2 ZE500Cl released for markets in different countries.
